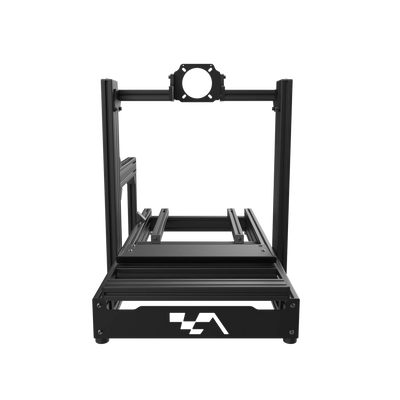

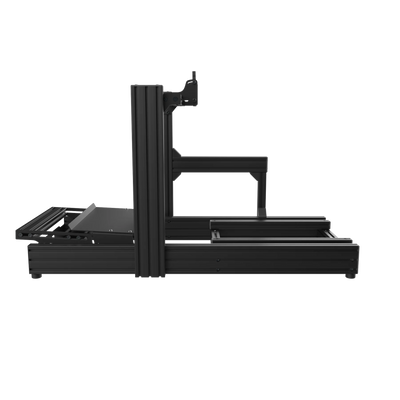

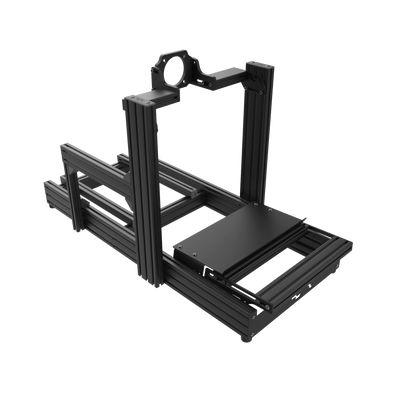

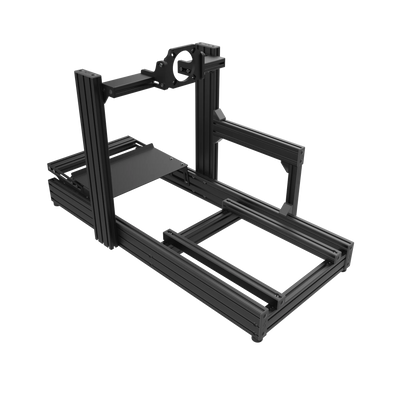

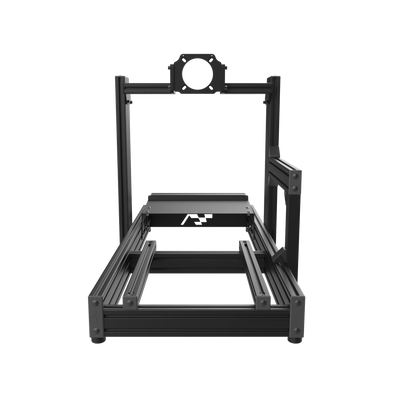

Advanced Sim Racing ASR 4 Chassis (Open Face)

Generation 2 Improvements & Changes

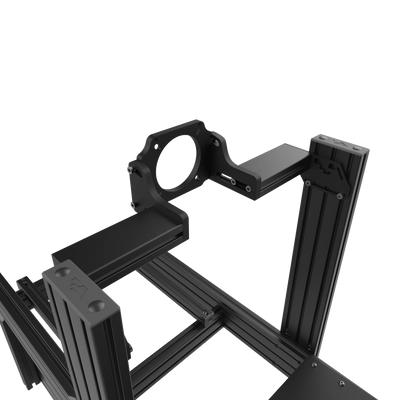

• • Brand new wheel deck design that offers even more flexibility and adjustability for the position of your wheelbase.
  • Brand new New Generation 2 Aluminum Pedal Tray & Heel Rest design which allows for industry-leading compatibility and maximum adjustability for the position of your pedals.
  • Now available (as an option) with our Pro Wheel Deck for market-leading adjustability on your wheelbase and wheel position and angle.
  • Featuring our classic "Open Face" Extruded Aluminum Profile
  • Completely overhauled assembly and design principles that allow for a much faster build involving less parts and most importantly, optimized stability and rigidity for the entire chassis.
  • Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability on this high-end chassis.
• The ASR 4 is our high-end SimRacing chassis with a 4.5" aluminum base and reinforced steering column.
• Its 4.5" aluminum base will give you more height and stability, ensuring optimal performance from the most powerful SimRacing peripherals.
• Zero flex and no weak points design philosophy.
• The ASR 4 is available in Matte Black (Powder Coat). Our proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Made from top-grade alloy Aluminum sourced in the United States of America
• Produced and packaged in Canada with the utmost care and attention.
• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.

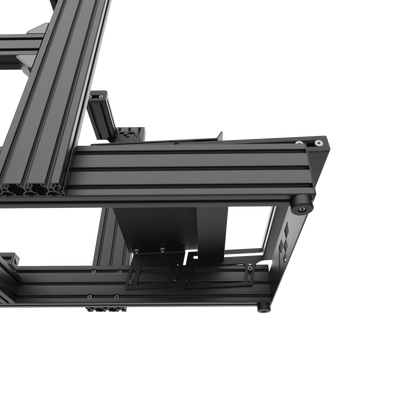

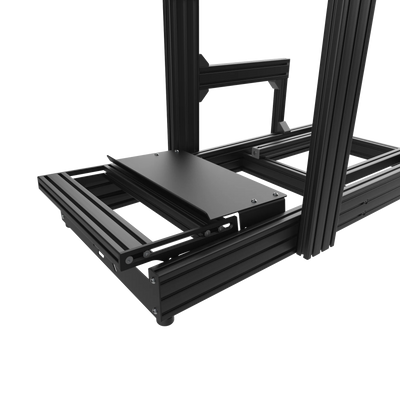

• The included pedal plate is fully adjustable in height, angle, and mounting position on the chassis to help you achieve a comfortable position.
• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
• Four Wheel Deck options available :
  • Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
  • Fanatec Side Mount (Compatible with all modern Fanatec Products)

  • Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
  • Asetek Front Mount (Exclusively for Asetek Wheelbases)
• You now have the option to select your Wheel Deck Adjustability
  • Classic Wheel Deck
  • Pro Wheel Deck (Inspired by our flagship ASR Pro Chassis)

SPECIFICATIONS

• Base composition : 4.5" x 1.5"
• Steering column composition : 4.5" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 29"
• Weight when assembled (w/o accessories): 116lbs.

WHAT'S INCLUDED?

• Box 1 (Aluminum)

  • 1 x Aluminum profile 50" x 4.5" x 1.5"

  • 1 x Aluminum profile 28" x 4.5" x 1.5"

  • 1 x Aluminum profile 19" x 3" x 1.5"

  • 1 x Aluminum profile 18.5" x 3" x 1.5"

  • 1 x Aluminum profile 18" x 3" x 1.5"

  • 1 x Aluminum profile 13" x 1.5" x 1.5"

  • 1 x ASR Front Plate
• Box 2 (Aluminum)

  • 1 x Aluminum profile 50" x 4.5" x 1.5"

  • 1 x Aluminum profile 28" x 4.5" x 1.5"

  • 1 x Aluminum profile 19" x 3" x 1.5"

  • 1 x Aluminum profile 18.5" x 3" x 1.5"

  • 2 x Aluminum profile 22" x 1.5" x 1.5"

• Box 3 (Hardware & Pedal Tray)

  • 2X Pedal Tray side brackets

  • Left and Right Heel Rest Side Brackets

  • Heel Rest Plate

  • 8 x Corner Gussets and Plastic Caps

  • 22x M8 Screws (35mm)

  • 4 x M8 Screws (25mm)

  • 22 x M8 Screws (16mm)

  • 12 x M8 Screws (12mm)

  • 4 x M8 locknuts

  • 36 x M8 T-Nuts

  • Endcaps

  • 5 x 1.5" Endcaps

  • 1 x 3" Endcaps

  • 4 x 4.5" Endcaps

  • 8 x Pushcaps

  • 16 x Pushpins

  • 4 x Rubber feet

  • 4 x M6 Screws (20mm)

  • 4 x M6 T-Nuts

• Box 4 (Classic Wheel Deck Variant)

  • Common content

    • 8 x Flathead screws (16mm)

    • 2 x Aluminum profile 6 7/8" x 3" x 1.5"

    • 2 x wheel deck brackets

    • *Depending on configuration, one set of the following is included*

  • Standard Wheel Deck Content

    • Standard Steel Plate

    • 2 x 3" endcaps

    • 4 x pushpins

  • Fanatec Side Mount Content

    • 2 x DD side brackets (L & R)

    • 2 x CSL DD spacers

    • 4 x M8 Screws (16mm)

    • 4 x M8 Screws (20mm)

  • Simucube Front Mount

    • 2 x DD side brackets (L & R)

    • 1 x Front Mount Plate

    • 4 x M8 screws (16mm)

    • 4 x M8 screws (20mm)

  • Asetek Front Mount

    • 2 x DD side brackets (L & R)

    • 1 x Asetek Mount Plate

    • 4 x M8 screws (16mm)

    • 4 x M8 screws (20mm)

• Box 4 (Pro Wheel Deck Variant)

  • 6 x Linear guide track

  • 6 x linear guide bearing

  • 2 x 2 7/8" x 3" x 1.5" extrusion

  • 2 x 8" x 1.5" x 1.5" extrusion

  • 2 x lower vertical stopper plate

  • 2 x upper vertical stopper plate

  • 2 x dual bearing plate

  • 2 x single bearing plate

  • 4 x horizontal stopper plate

  • 2 x DD side plate

  • 1 x front mount plate

  • 12 x M8 button head screws (12mm)

  • 8 x M5 screws (16mm)

  • 6 x M5 Flat Head Screws (12mm)

  • 12 x M8 Flat Head Screws (16mm)

COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)
• Fanatec (Podium DD & CSL DD Side Mount)
• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+
• Asetek (Front Mount)
• All Asetek Wheel base
• Simucube & MiGE Motor (Front Mount)
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Aluminum Pedal Deck & Heel Rest

  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
  • Fanatec ClubSport V3
  • Fanatec CSL
  • Fanatec CSL Elite

  • Not compatible with the CSR Pedals
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
• Thrustmaster products

• Logitech products
• Simtrecs ProPedal GT
• Simagic P1000 & P2000 & Inverted Versions
• Heusinkveld
• MECA Cup1
• MECA EVO1

• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)

• And many more (please inquire directly with us for specific pedal sets)

ASSEMBLY GUIDE

The ASR 4 - "Open Face" Extruded Aluminum Profile (Generation 2) assembly guide is available right here.

The Pro Wheel Deck assembly guide is available right here.

SHIPPING AND LEAD TIME

• FREE SHIPPING to all of the Continental U.S., the European Union and Canada (excluding Yukon, Northwest Territories & Nunavut).
• We ship from Montreal in Canada.
• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

WARRANTY

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any aesthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
