Vendor:Advanced SimRacing

Advanced Sim Racing ASR 4 Chassis (Open Face)

$1,179.99 CAD
Wheel Deck
Wheel Deck: Classic Wheel Deck
Wheelbase Mounting
Wheelbase Mounting: Standard
Color [Powder Coat]
Color [Powder Coat]: Matte Black

Pairs well with

Secure Checkout.

Returns up to 30 days. Return shipping paid by customer.

Full Manufacturer's Warranty.

Free shipping over $250 (exclusions apply)

The Advanced Sim Racing ASR 4 Open Face is a Generation 2 aluminium profile chassis built for high-torque direct-drive bases and load-cell or hydraulic pedals. ASR produces and packages it in Canada.

  • 4.5" x 1.5" open face aluminium profile base and steering column

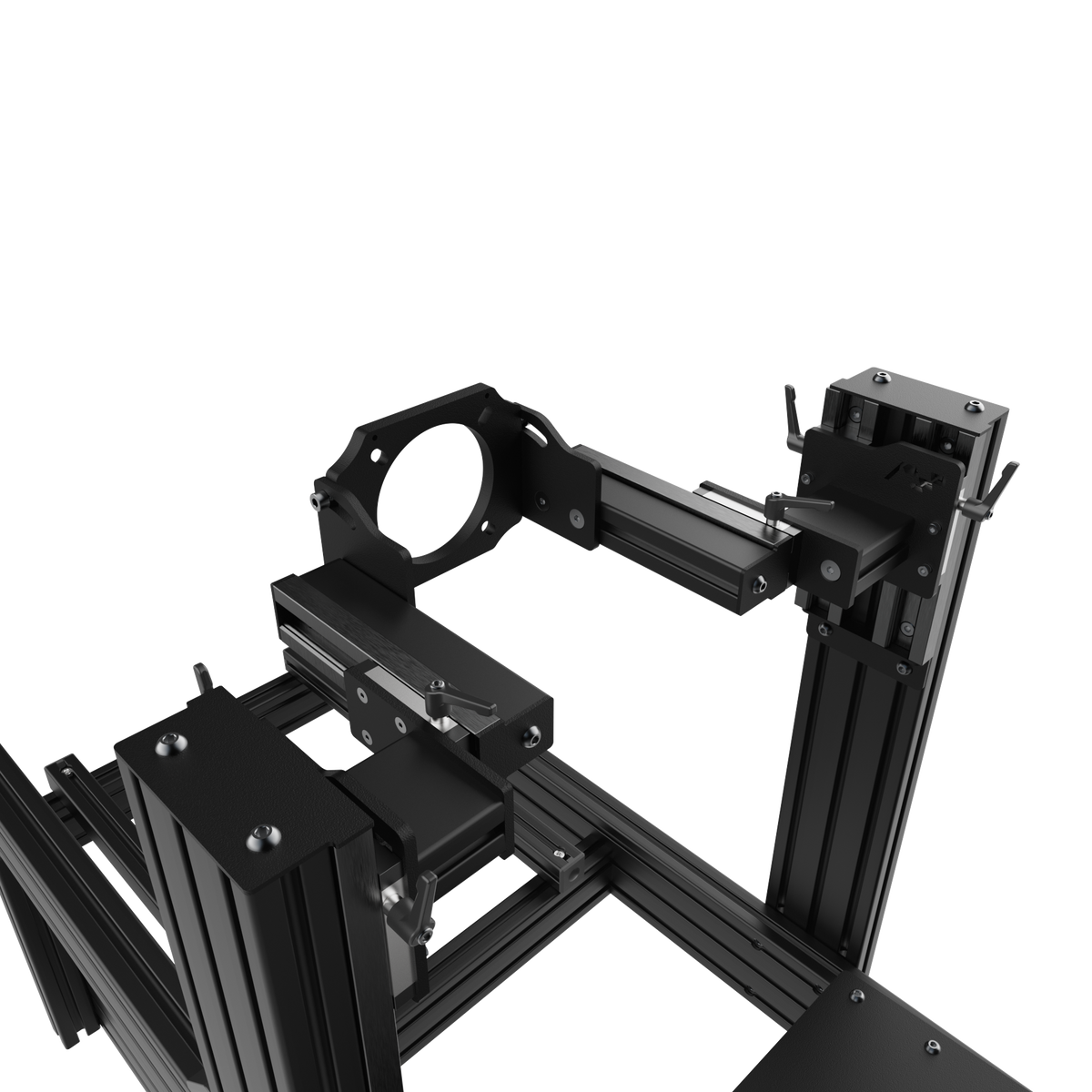

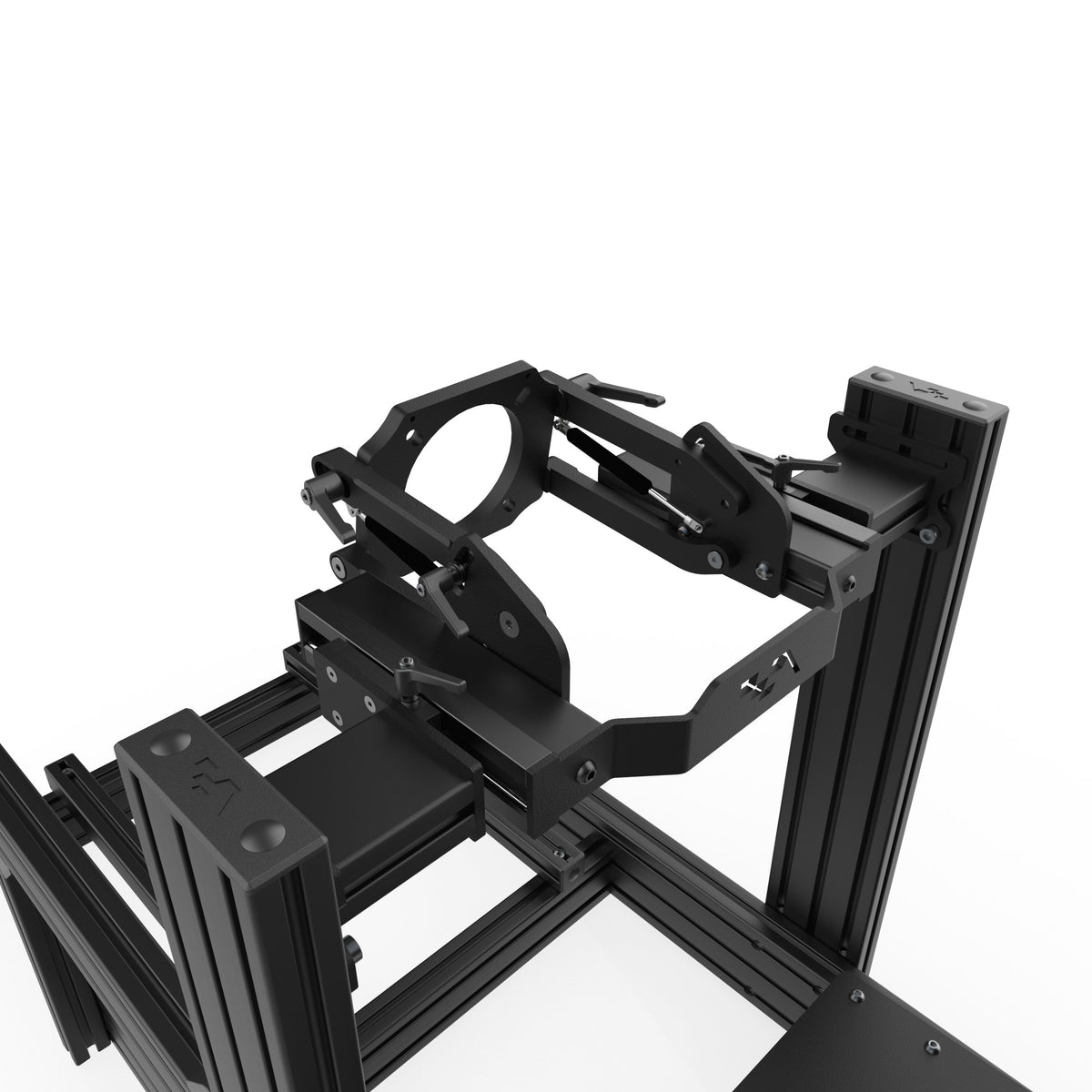

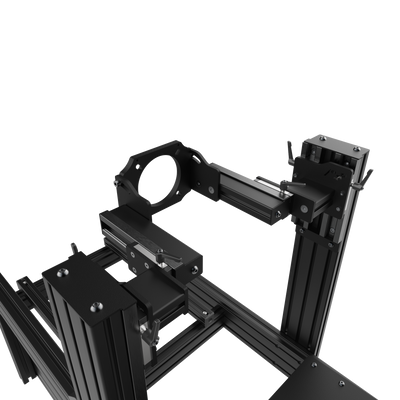

  • Classic or Pro wheel deck, with Standard, Fanatec side mount, Simucube/MiGE or Asetek front mount options (Evo: front mounts only)
  • Generation 2 aluminium pedal tray and heel rest with wide adjustment
  • Fits drivers up to 6'6"
  • Matte black powder coat finish

Seat, seat brackets and accessories are sold separately.

Authorized dealer. No duties, ships from Canada.

Specs
  • Profile: Open Face extruded aluminium (Generation 2)
  • Base composition: 4.5" x 1.5"
  • Steering column composition: 4.5" x 1.5"
  • Base length: 50"
  • Base width: 22"
  • Height (rubber feet to steering column tip): 29"
  • Weight assembled (without accessories): 116 lb
  • Driver height: up to 6'6" (1.98 m)
  • Finish: Matte Black powder coat; steel parts in textured matte black
  • Wheel deck adjustability: Classic or Pro
  • Wheel deck mounts: Standard, Fanatec Side Mount, Simucube/MiGE Front Mount, Asetek Front Mount (Evo: front mounts only)
  • Pedal deck: Generation 2 aluminium pedal tray and heel rest
  • Material: US-sourced alloy aluminium; produced and packaged in Canada
Who it's for
  • Sim racers with high-torque direct-drive bases and load-cell or hydraulic pedals who want a zero-flex aluminium profile chassis
  • Drivers up to 6'6" (1.98 m)
  • Fanatec, Simucube/MiGE, Asetek, Moza, Simagic and VRS owners: pick the matching wheel deck
  • Lighter wheel stand users may not need this much rig.
What's included
  • 1 x Aluminium profile kit (Boxes 1 and 2)
  • 1 x ASR front plate
  • 2 x Pedal tray side brackets
  • 2 x Heel rest side brackets (left and right)
  • 1 x Heel rest plate
  • 8 x Corner gussets with plastic caps
  • 1 x Hardware set (M8 and M6 screws, T-nuts, locknuts, end caps, push caps, push pins)
  • 4 x Rubber feet
  • 1 x Wheel deck kit (Classic or Pro, for your selected mount)
FAQs

Which wheel deck should I pick?

Pick the mount that matches your base: Standard, Fanatec Side Mount, Simucube/MiGE Front Mount or Asetek Front Mount. The Pro deck adds more wheel position and angle adjustment than the Classic. The Evo deck comes in front-mount versions only.

Does the ASR 4 come with a seat?

No. The ASR 4 Open Face is the chassis only, with the profile kit, front plate, pedal tray, heel rest, gussets, hardware, feet and your chosen wheel deck kit. Seat brackets and a seat are sold separately.

How tall can the driver be?

ASR lists the ASR 4 Open Face for drivers up to 6'6". The pedal tray, heel rest and wheel deck all adjust, so you can dial in the seating position for your height and driving style.

How big and heavy is it?

Assembled, the base is 50" long and 22" wide, and about 29" from the rubber feet to the tip of the steering column. It weighs about 116 lb without accessories, so plan the space before you build.
