ASCHER-RACING PRO BLACK EDITION
ASCHER-RACING PRO BLACK EDITION
ASCHER-RACING PRO BLACK EDITION
ASCHER-RACING PRO BLACK EDITION

Vendor:Ascher Racing

Ascher Racing Pro Black Edition USB Steering Wheel

$1,549.99 CAD

Pairs well with

Secure Checkout.

Returns up to 30 days. Return shipping paid by customer.

Full Manufacturer's Warranty.

Free shipping over $250 (exclusions apply)

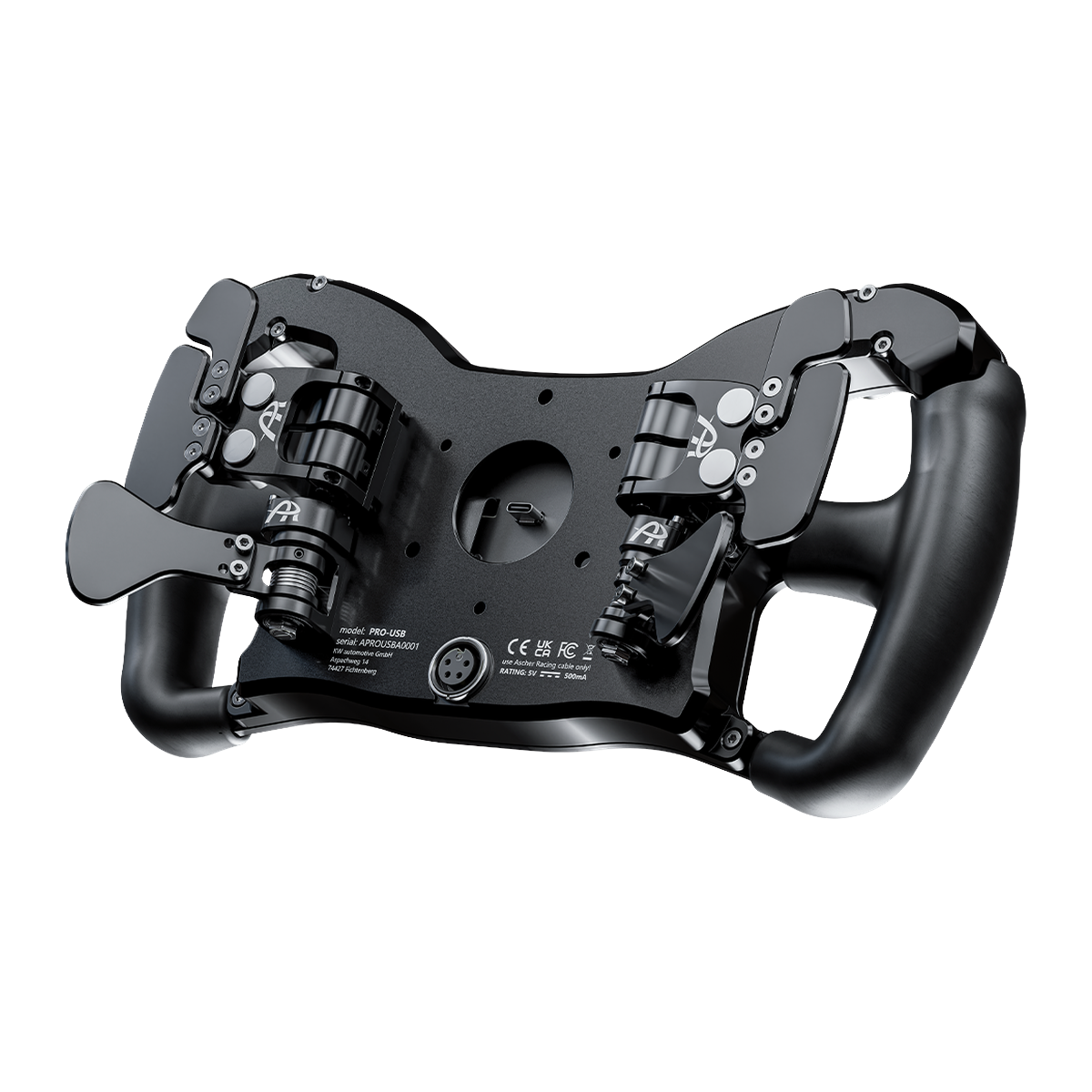

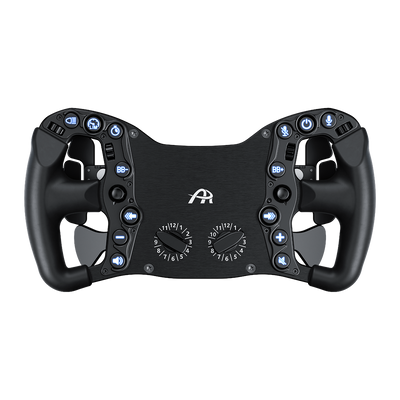

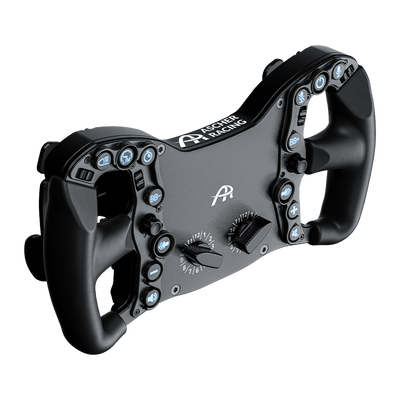

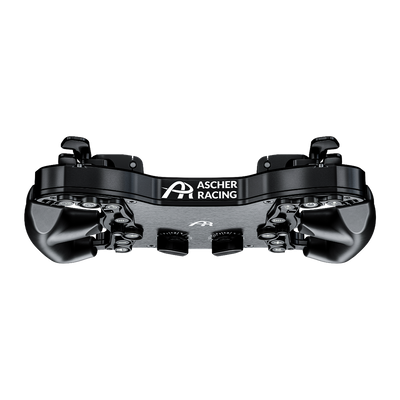

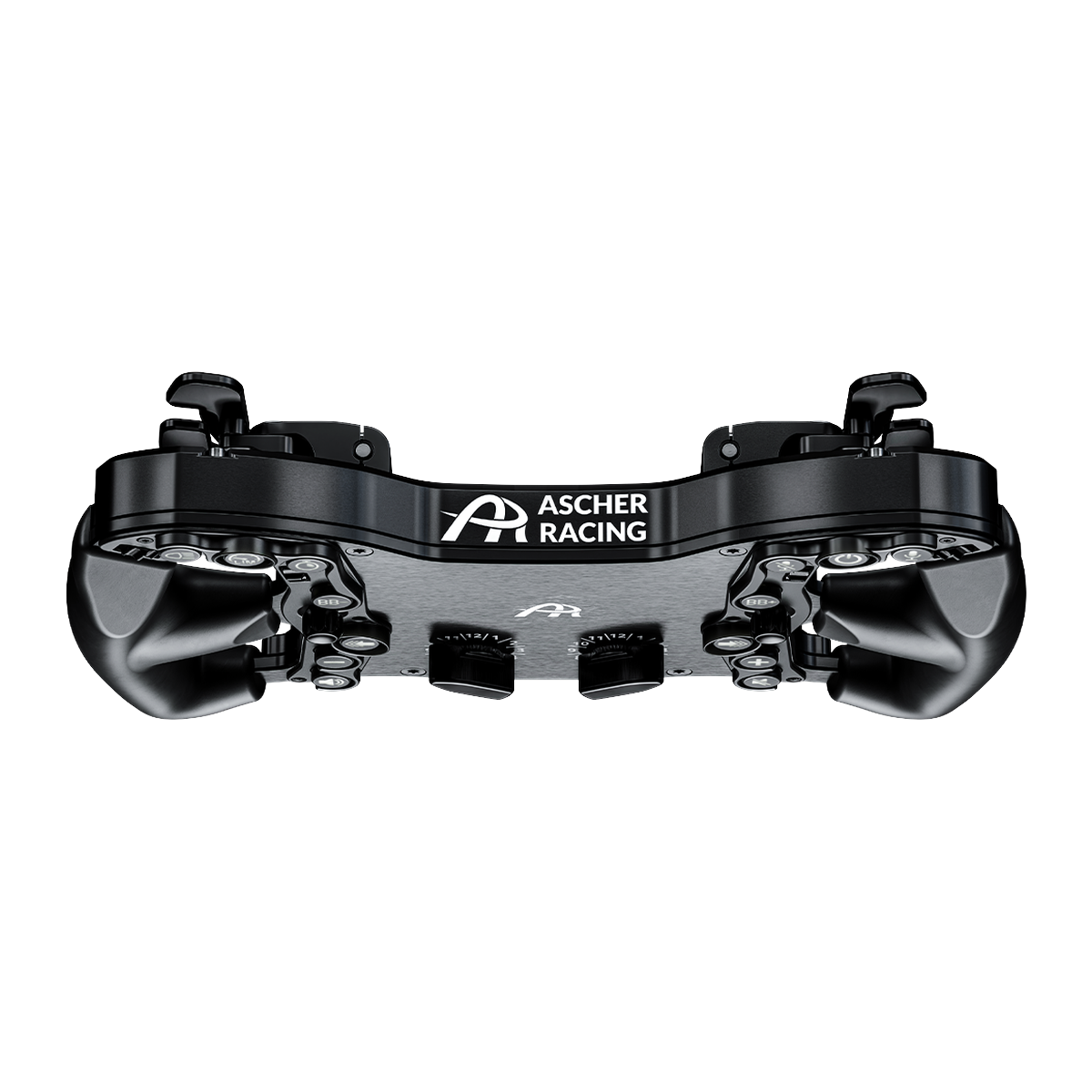

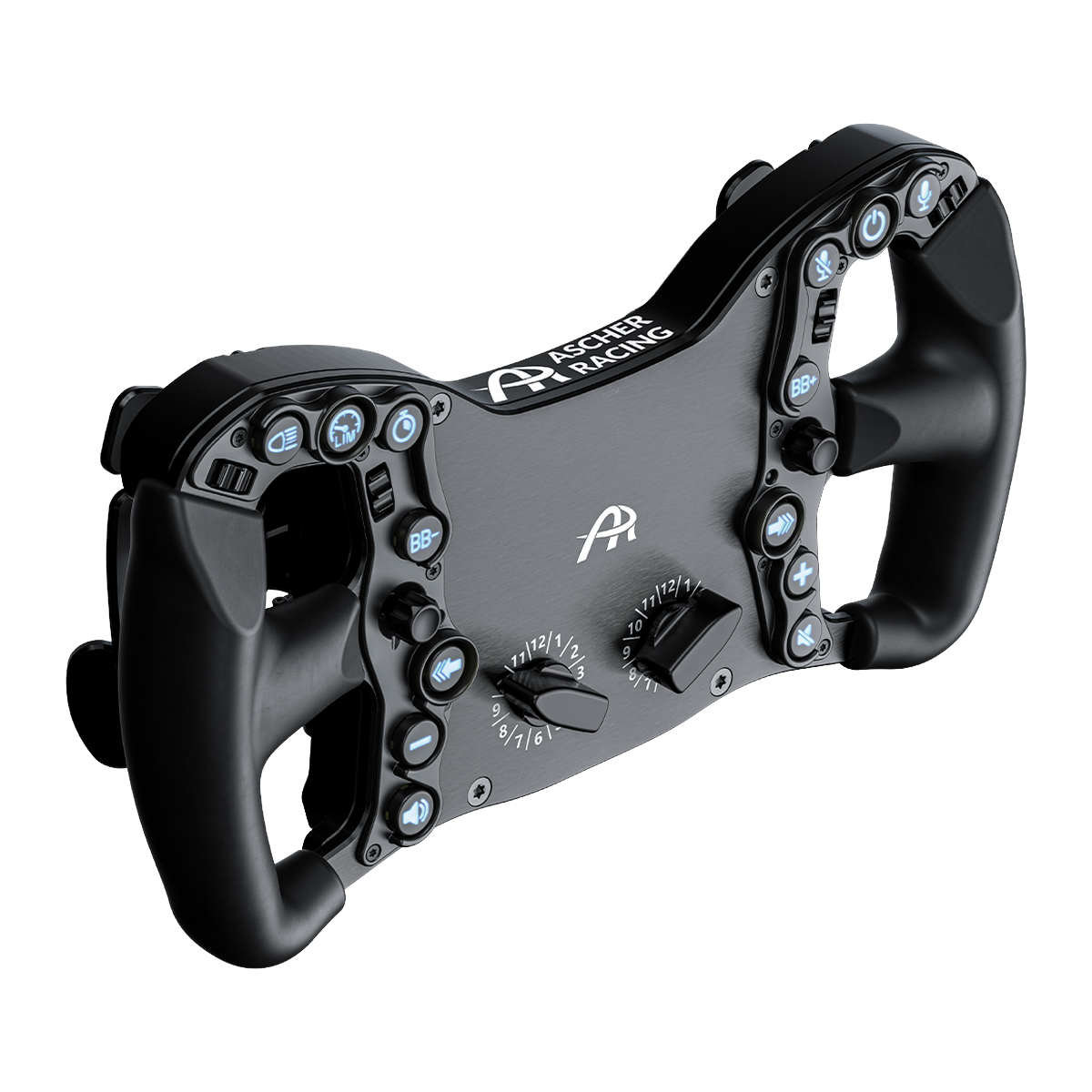

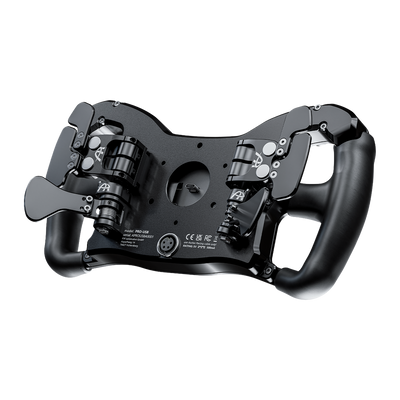

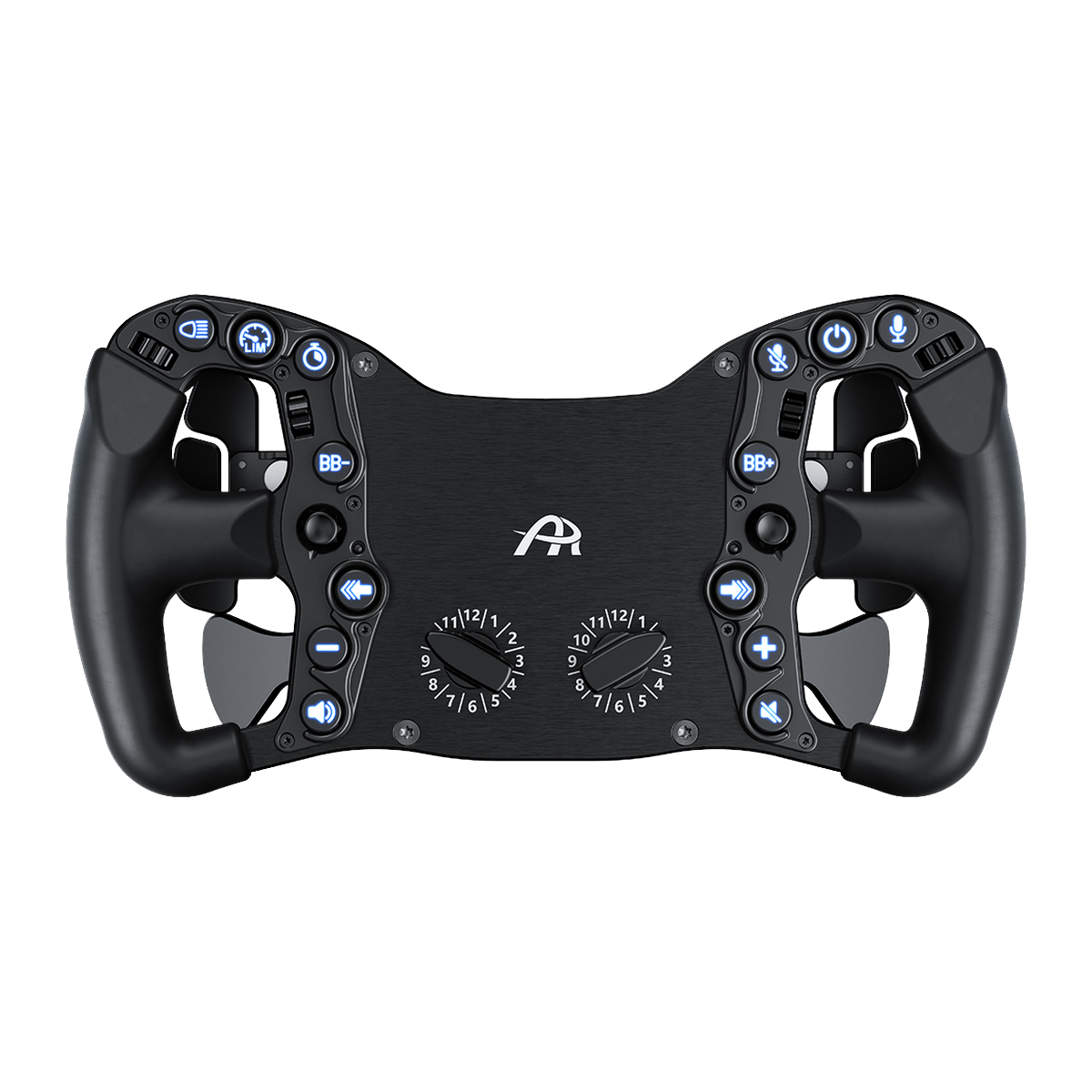

The Ascher Racing Pro Black Edition is a 300 mm closed USB steering wheel in an all-black finish. It is built on Ascher's McLaren Artura esports wheel, with components from a real GT4 racing steering wheel and ergonomic rubber grips.

  • Over 100 inputs: 14 RGB buttons, 4 thumb encoders, 2 seven-way joysticks and 2 twelve-position rotaries
  • Gen6 magnetic, silenced double paddle shifters
  • Analog clutch paddles with electronic bite-point calibration
  • USB to your PC, with no power injection needed
  • Standard 6 x 70 mm bolt pattern and internal USB-C passthrough for quick releases
  • No built-in display; the Ultimate Black Edition adds one

Authorized Ascher Racing dealer in Canada, no duties.

Specs
  • Model: Ascher Racing Pro (Pro-USB) Black Edition
  • Ascher part number: 76080098
  • Diameter: 300 mm, closed wheel
  • Grips: ergonomic rubber
  • Push buttons: 14 RGB-backlit, tactile feedback, adjustable lighting
  • Thumb encoders: 4, adjustable pulse width
  • Joysticks: 2 x 7-way (4 directions, clockwise and counterclockwise rotation, push)
  • Rotary switches: 2 x configurable 12-position
  • Shift paddles: 2 Gen6 magnetic, silenced double paddle shifters
  • Clutch paddles: 2 analog, electronic bite-point calibration
  • Clutch curves: adjustable non-linear, left and right set separately
  • Single shifter: retrofittable
  • Lighting: telemetry-based, animated RGB
  • Connection: USB with Binder connector and coiled cable
  • Quick-release passthrough: internal USB-C
  • Bolt pattern: 6 x 70 mm
  • Power draw: max 500 mA, no power injection required
  • Display: none built in
  • Platform: PC
Who it's for
  • PC sim racers who want a GT-style wheel with over 100 inputs
  • Drivers moving between wheelbases, since it connects by USB with a standard 6 x 70 mm bolt pattern
  • Racers who use analog dual clutches for starts
  • Anyone who prefers a separate dash or monitor; for a display on the wheel, see the Ultimate Black Edition
What's included
  • AR Pro-USB Black Edition Wheel
  • Coiled Cable (Short)
  • Button Cap Set
  • Sticker Sheet
  • Mounting Kit (screws, washers, and tools)
  • Quick Start Guide
FAQs

Which wheelbases does it work with?

Ascher says the wheel runs from any PC mainboard by USB, so it works with almost every common wheelbase, including Simucube, Fanatec, Simagic, MOZA, Leo Bodnar and OSW. It uses a 6 x 70 mm bolt pattern and has an internal USB-C port for passthrough quick releases.

Does it need a power injection or a battery?

No. Ascher rates it at a maximum of 500 mA, within the USB specification, so no power injection is required. It is a wired wheel that connects through the included short coiled cable with a Binder connector.

What is the difference between the Pro and Ultimate Black Edition?

Both share the 300 mm rim, the over 100 inputs, the Gen6 magnetic paddles and the analog clutches. The Ultimate Black Edition adds an integrated 4-inch touch display with 21 RGB shift LEDs, while the Pro has no display.

Do I need a quick release?

Yes, you mount the wheel to your base with a quick release. A wheel-side quick release is not in Ascher's box list, so choose the one that matches your wheelbase. Ascher describes its 6 x 70 mm bolt pattern as made for universal mounting.
