ASCHER-RACING ULTIMATE BLACK EDITION
ASCHER-RACING ULTIMATE BLACK EDITION
ASCHER-RACING ULTIMATE BLACK EDITION
ASCHER-RACING ULTIMATE BLACK EDITION

Vendor:Ascher Racing

Ascher Racing Ultimate Black Edition Steering Wheel with 4" Display

$1,999.99 CAD
New

Pairs well with

Secure Checkout.

Returns up to 30 days. Return shipping paid by customer.

Full Manufacturer's Warranty.

Free shipping over $250 in Canada (exclusions apply)

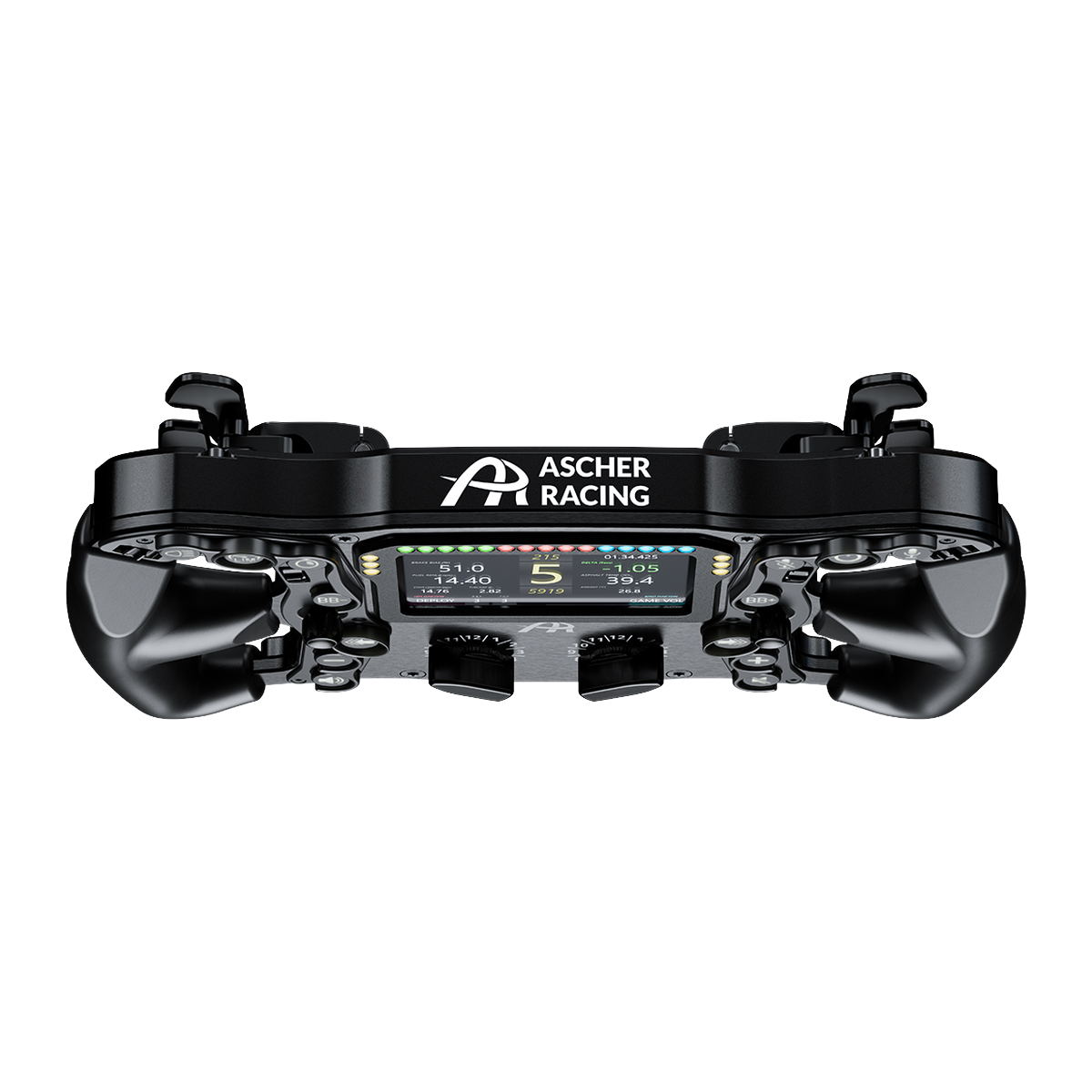

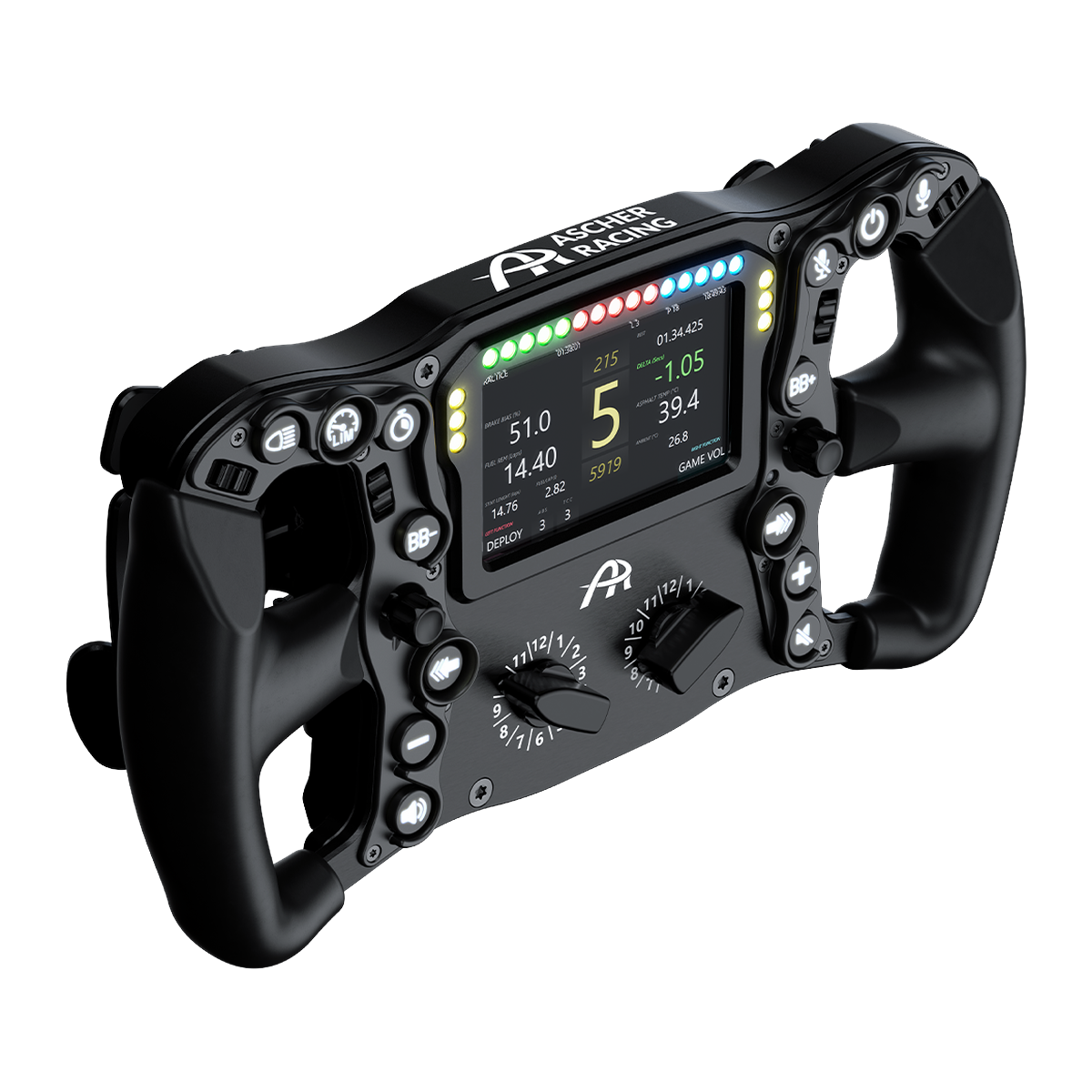

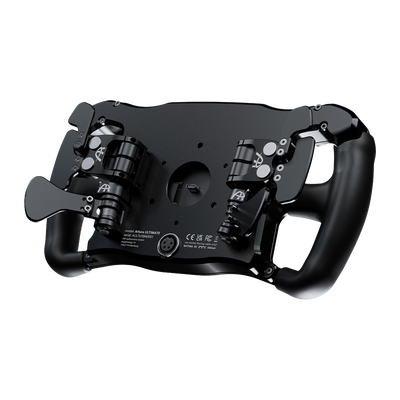

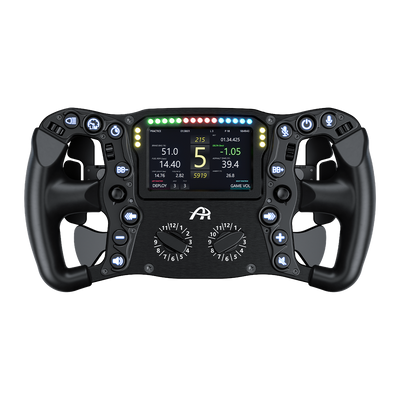

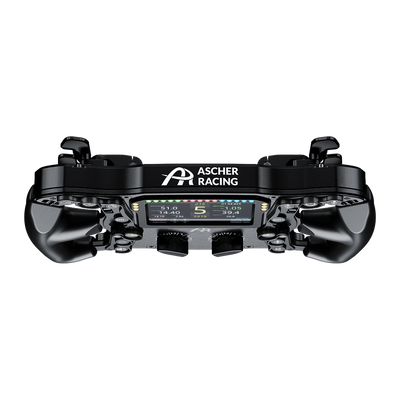

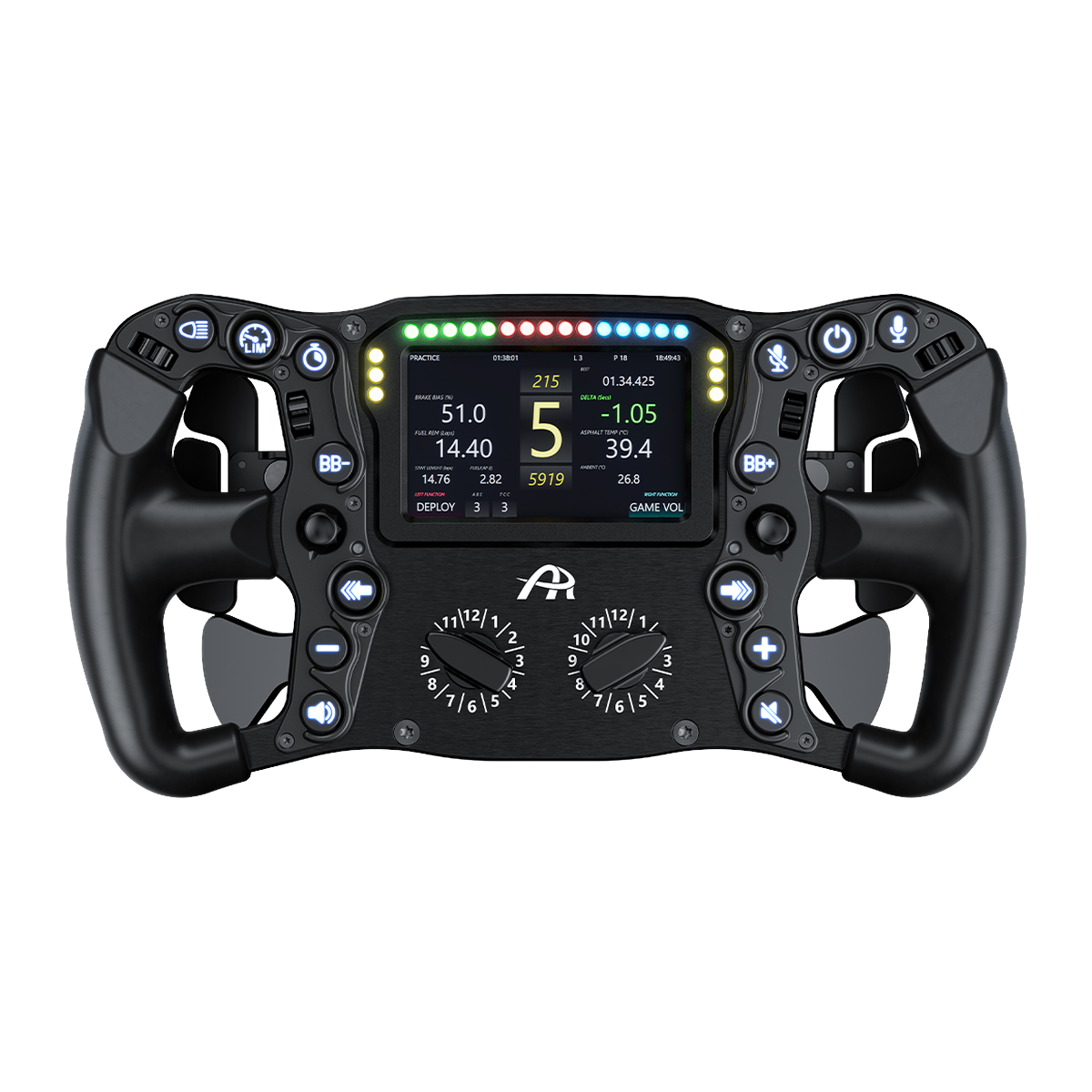

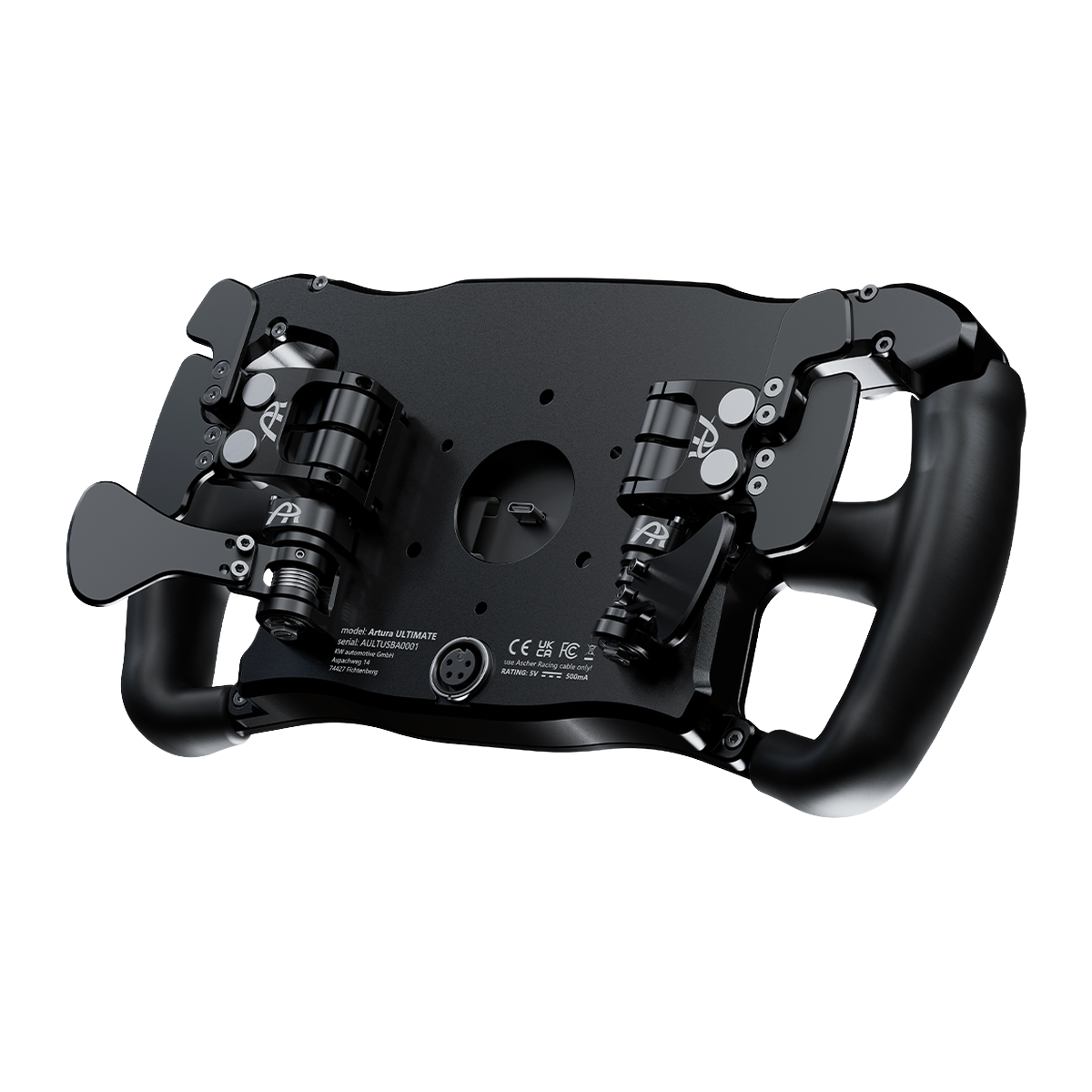

The Ascher Racing Ultimate Black Edition is a 300 mm closed USB steering wheel in an all-black finish, with a built-in 4-inch touch display and 21 RGB shift LEDs. It is built on Ascher's McLaren Artura esports wheel, with components from a real GT4 racing steering wheel.

  • 4-inch high-resolution touch display, 16-bit colour, 350 lm
  • 21 RGB shift LEDs with SimHub integration
  • Over 100 inputs: 14 RGB buttons, 4 thumb encoders, 2 seven-way joysticks and 2 twelve-position rotaries
  • Gen6 magnetic, silenced double paddle shifters and analog clutch paddles
  • USB to your PC, with no power injection needed
  • Standard 6 x 70 mm bolt pattern and internal USB-C passthrough

Authorized Ascher Racing dealer in Canada, no duties.

Specs
  • Model: Ascher Racing Ultimate Black Edition
  • Ascher part number: 76080099
  • Diameter: 300 mm, closed wheel
  • Grips: ergonomic rubber
  • Push buttons: 14 RGB-backlit, tactile feedback, adjustable lighting
  • Thumb encoders: 4, adjustable pulse width
  • Joysticks: 2 x 7-way (4 directions, clockwise and counterclockwise rotation, push)
  • Rotary switches: 2 x configurable 12-position
  • Shift paddles: 2 Gen6 magnetic, silenced double paddle shifters
  • Clutch paddles: 2 analog, electronic bite-point calibration
  • Clutch curves: adjustable non-linear, left and right set separately
  • Single shifter: retrofittable
  • Lighting: telemetry-based, animated RGB
  • Connection: USB with Binder connector and coiled cable
  • Quick-release passthrough: internal USB-C
  • Bolt pattern: 6 x 70 mm
  • Power draw: max 500 mA, no power injection required
  • Display: 4-inch high-resolution, touch operation
  • Display colour and brightness: 16-bit colour, 350 lm
  • Shift lights: 21 RGB LEDs (16 million colours)
  • Telemetry software: SimHub integration
  • Platform: PC
Who it's for
  • PC sim racers who want shift lights and live data on the wheel itself
  • GT and endurance drivers who use many in-car controls
  • Drivers moving between wheelbases, since it connects by USB with a standard 6 x 70 mm bolt pattern
  • SimHub users who build their own dash pages and LED profiles
  • Racers who want the Pro's controls plus a display
What's included
  • AR Ultimate Black Edition Wheel
  • Coiled Cable (Short)
  • Button Cap Set
  • Sticker Sheet
  • Mounting Kit (screws, washers, and tools)
  • Quick Start Guide
FAQs

What does the display show?

The integrated 4-inch high-resolution touch display sits between 21 RGB shift LEDs. With Ascher's SimHub integration you can show shift points and live telemetry. Ascher lists 16-bit colour depth and 350 lm brightness, and the screen supports touch operation.

Which wheelbases does it work with?

Ascher says the wheel runs from any PC mainboard by USB, so it works with almost every common wheelbase, including Simucube, Fanatec, Simagic, MOZA, Leo Bodnar and OSW. It uses a 6 x 70 mm bolt pattern and an internal USB-C port for passthrough quick releases.

Does it need a power injection or a battery?

No. Ascher rates the wheel at a maximum of 500 mA, within the USB specification, so no power injection is required. It is a wired wheel that connects through the included short coiled cable with a Binder connector.

How is it different from the Pro Black Edition?

Both use the same 300 mm rim, over 100 inputs, Gen6 magnetic paddles and analog clutches with bite-point calibration. The Ultimate Black Edition adds the 4-inch touch display and 21 RGB shift LEDs; the Pro has no display.

Do I need a quick release?

Yes, you mount the wheel to your base with a quick release. A wheel-side quick release is not in Ascher's box list, so choose the one that matches your wheelbase. Ascher describes its 6 x 70 mm bolt pattern as made for universal mounting.
