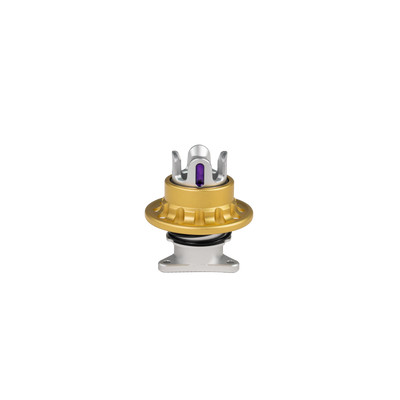

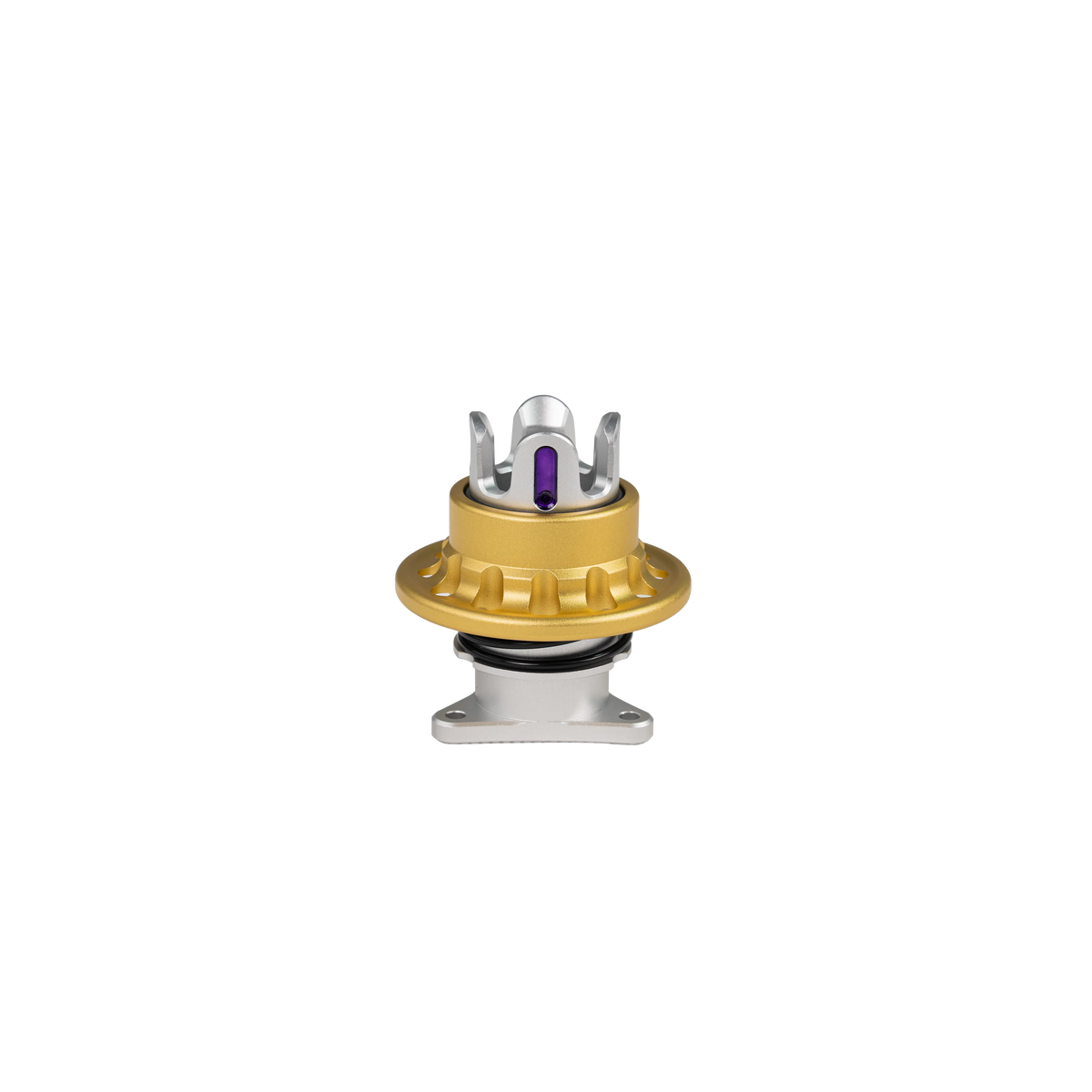

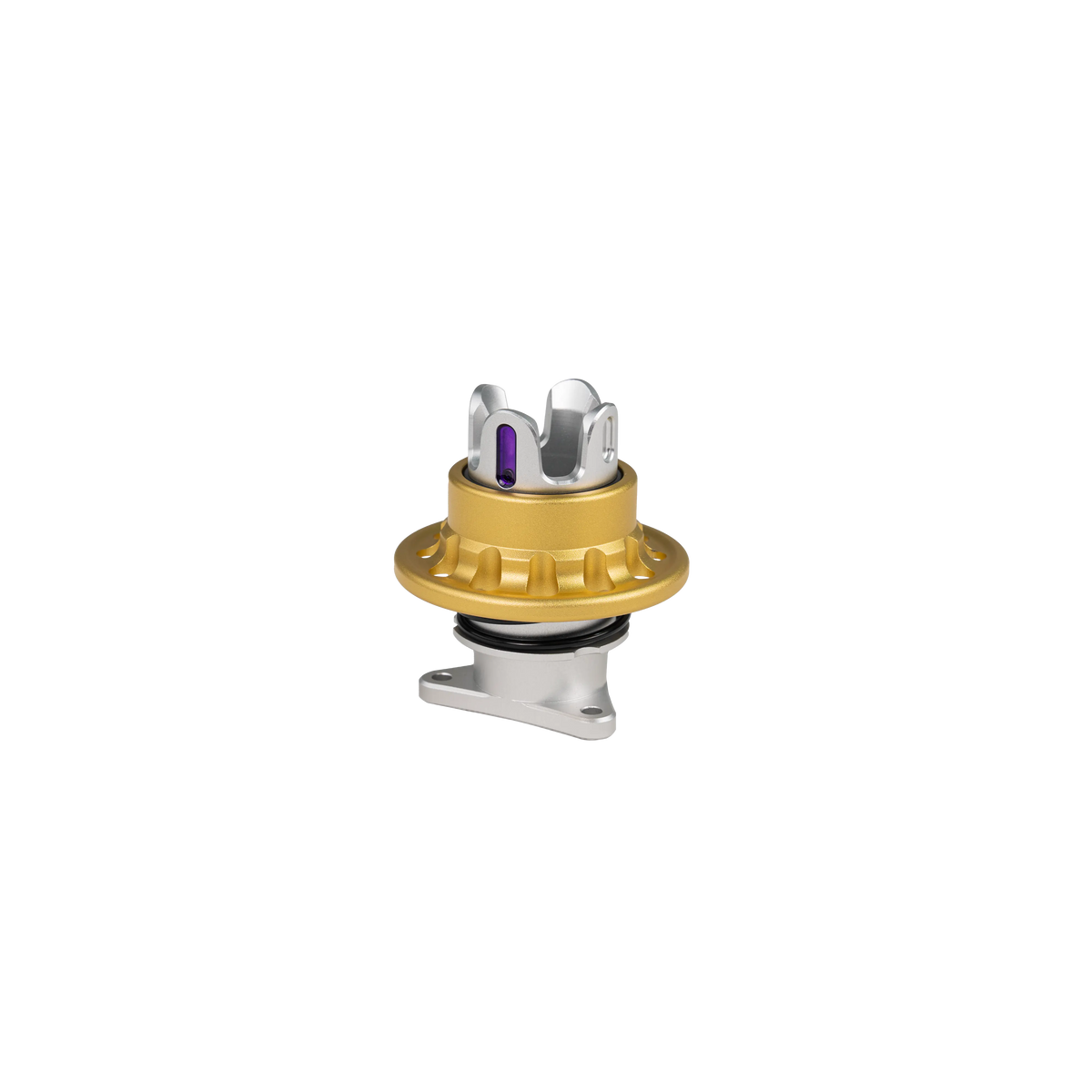

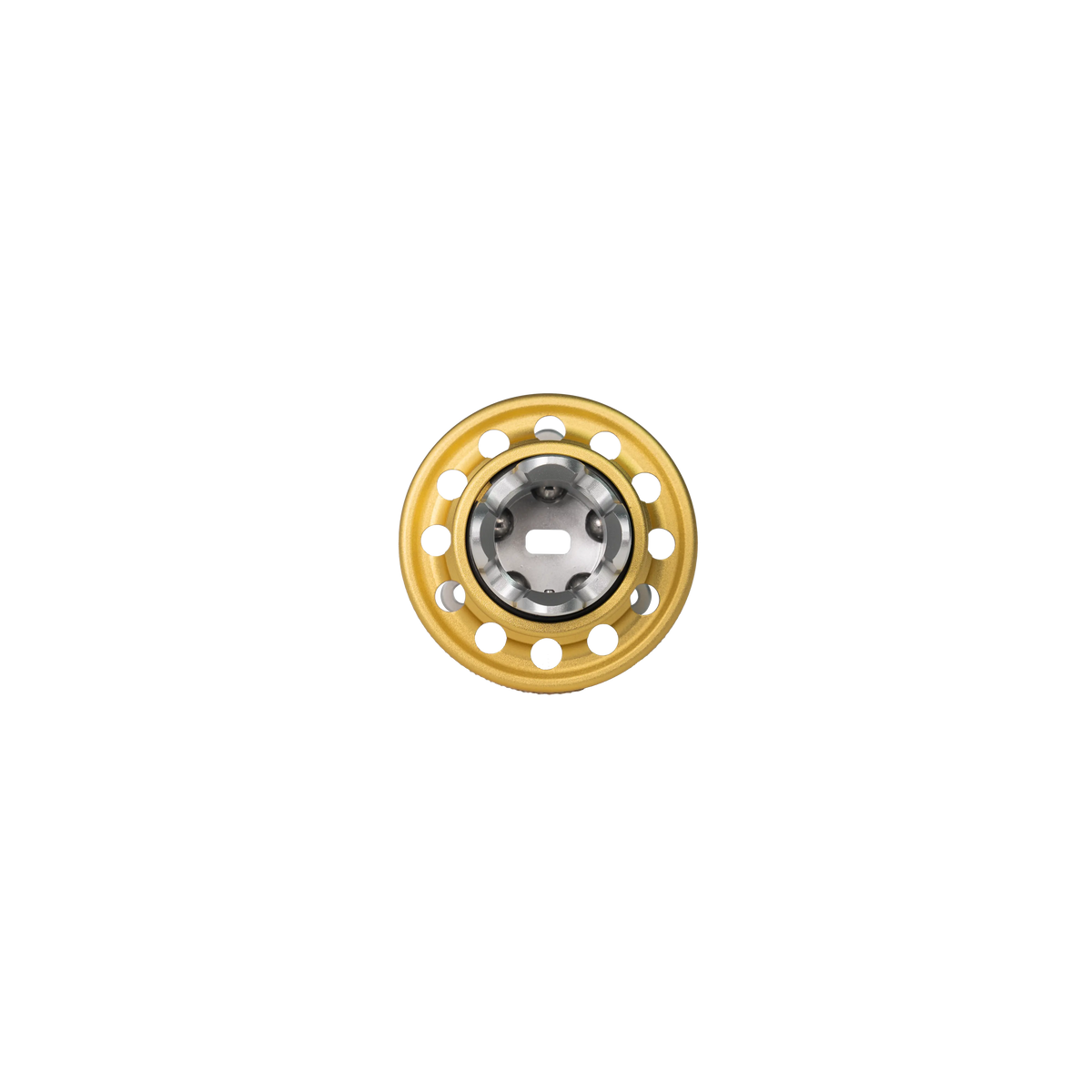

Conspit CDP Quick Release for ARES Wheelbases

The CDP Quick Release is Conspit's Formula-inspired wheel connection for its ARES wheelbase ecosystem. A CNC-machined 7075 aluminum clasp carries the torque, a ball-lock holds the wheel in position, and spring contacts carry the wheel's signal through the hub.

Pick one up to fit an extra wheel for quick swaps on a CDP-equipped ARES setup.

Key Features

• Formula-inspired locking: the clasp handles torque transmission while the balls control fore-aft positioning. Splitting the loads this way improves precision and durability.
• CNC-machined 7075 aluminum clasp and ball-locking mechanism.
• Stable wired signal: integrated spring (pogo-pin) contacts keep the connection reliable, even around electromagnetic interference.
• Zero-play durability: optimized contact geometry resists wear under prolonged high loads.
• Lightweight: 224 g.

Specifications

• Dimensions: 80.3 × 74 × 74 mm
• Net weight: 224 g
• Main material: Aluminum alloy (7075 clasp)
• Connection: Conspit wheelbases (pogo-pin)
• Wheel mounting: 3 × Ø5 mm on 50 mm PCD
• Optional accessories: 50 mm to 70 mm adapter, Quick-Con adapter

Compatibility

• Conspit ARES wheelbases with the CDP quick release system
• Wheels with a 50 mm PCD (3 × Ø5 mm); 70 mm PCD wheels with the optional 50–70 mm adapter
