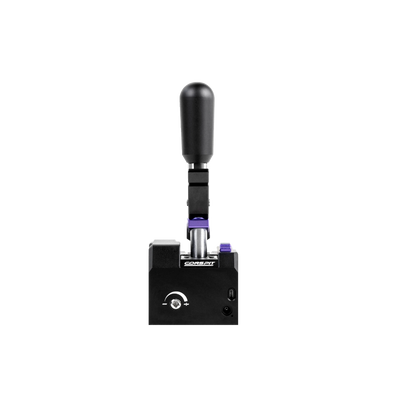

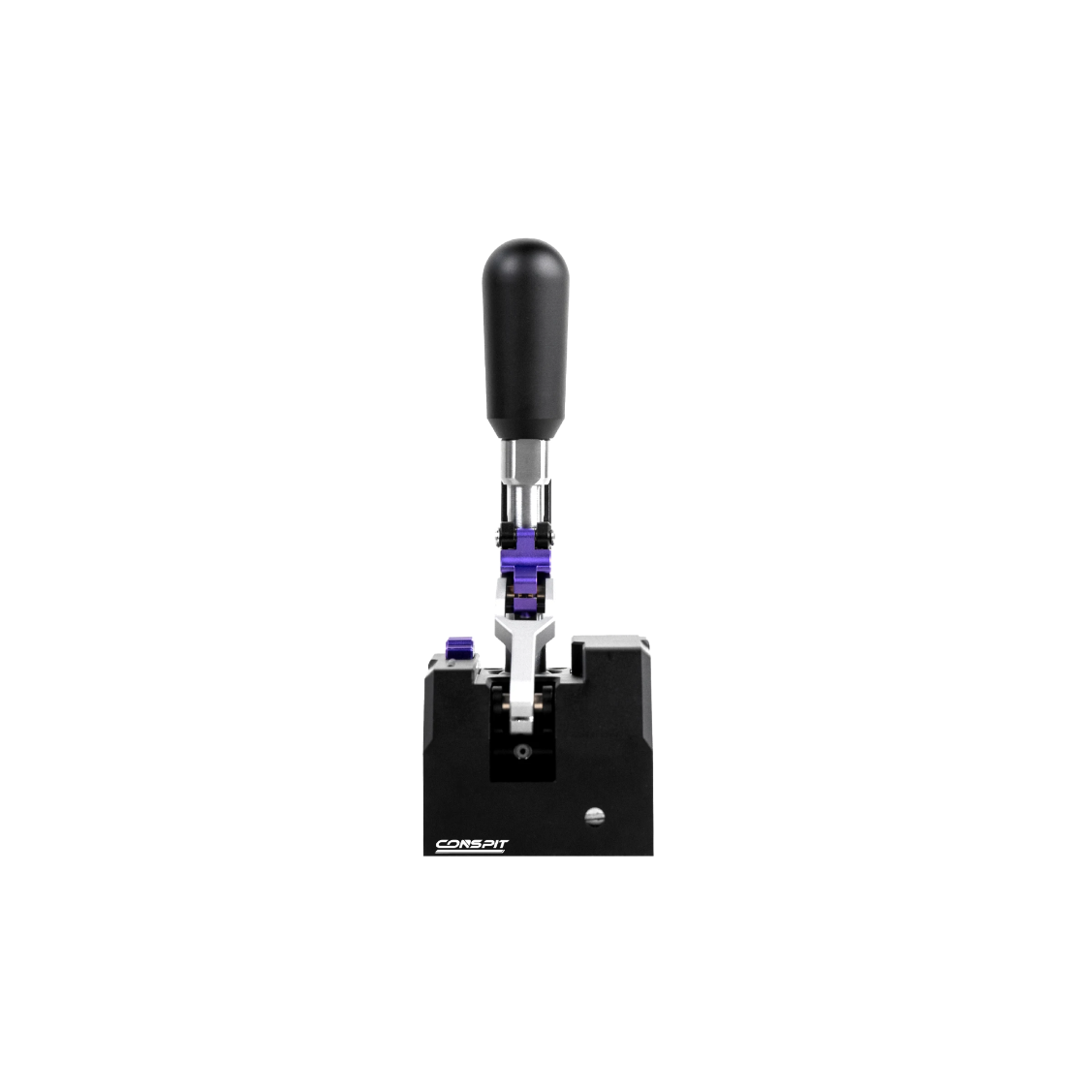

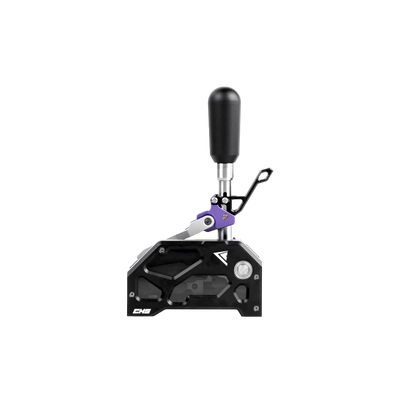

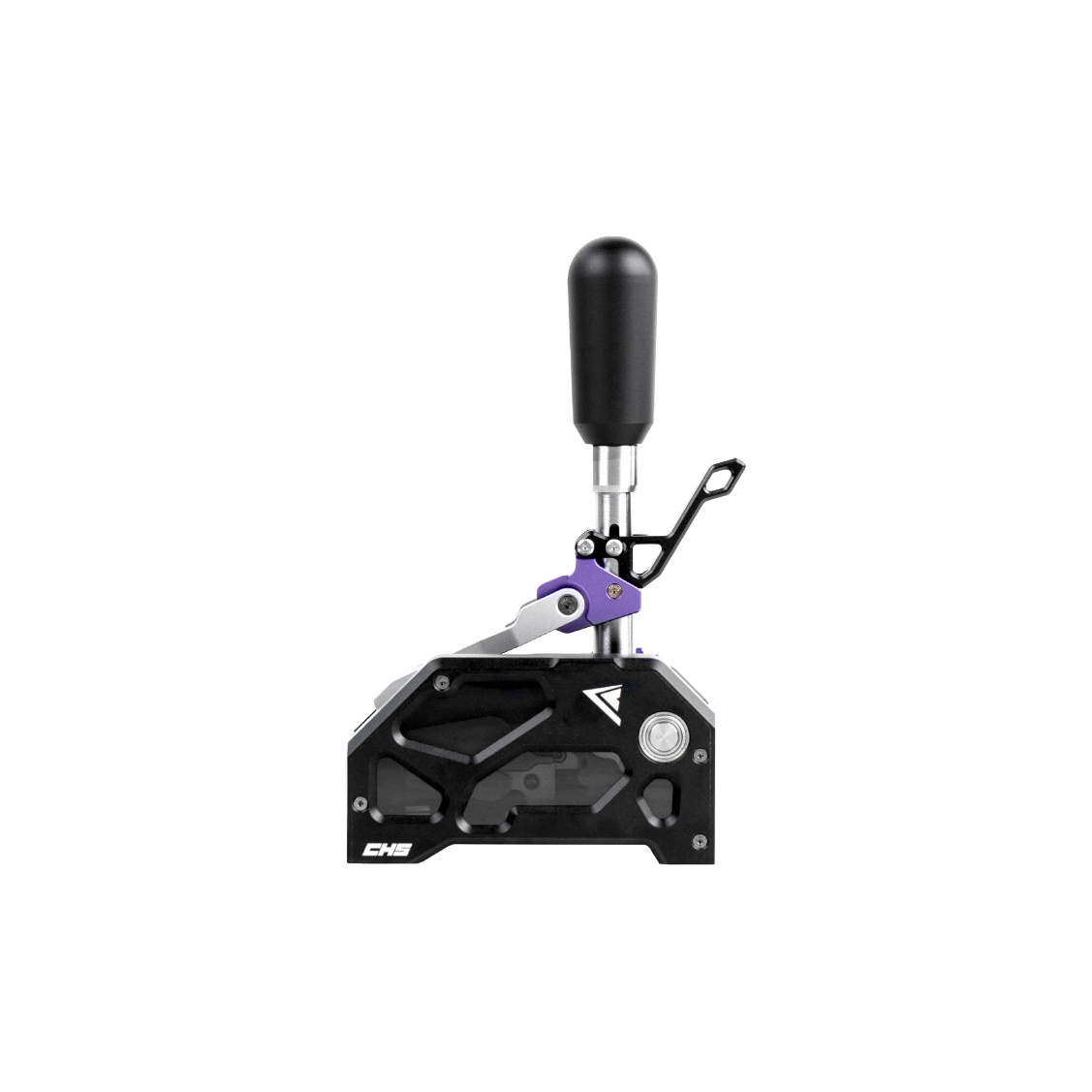

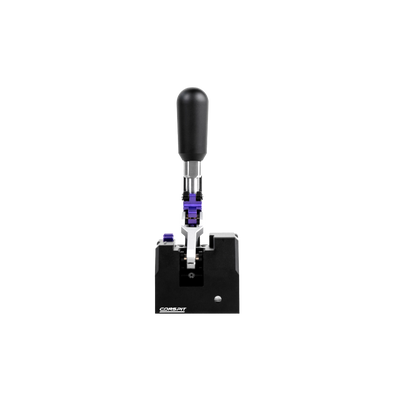

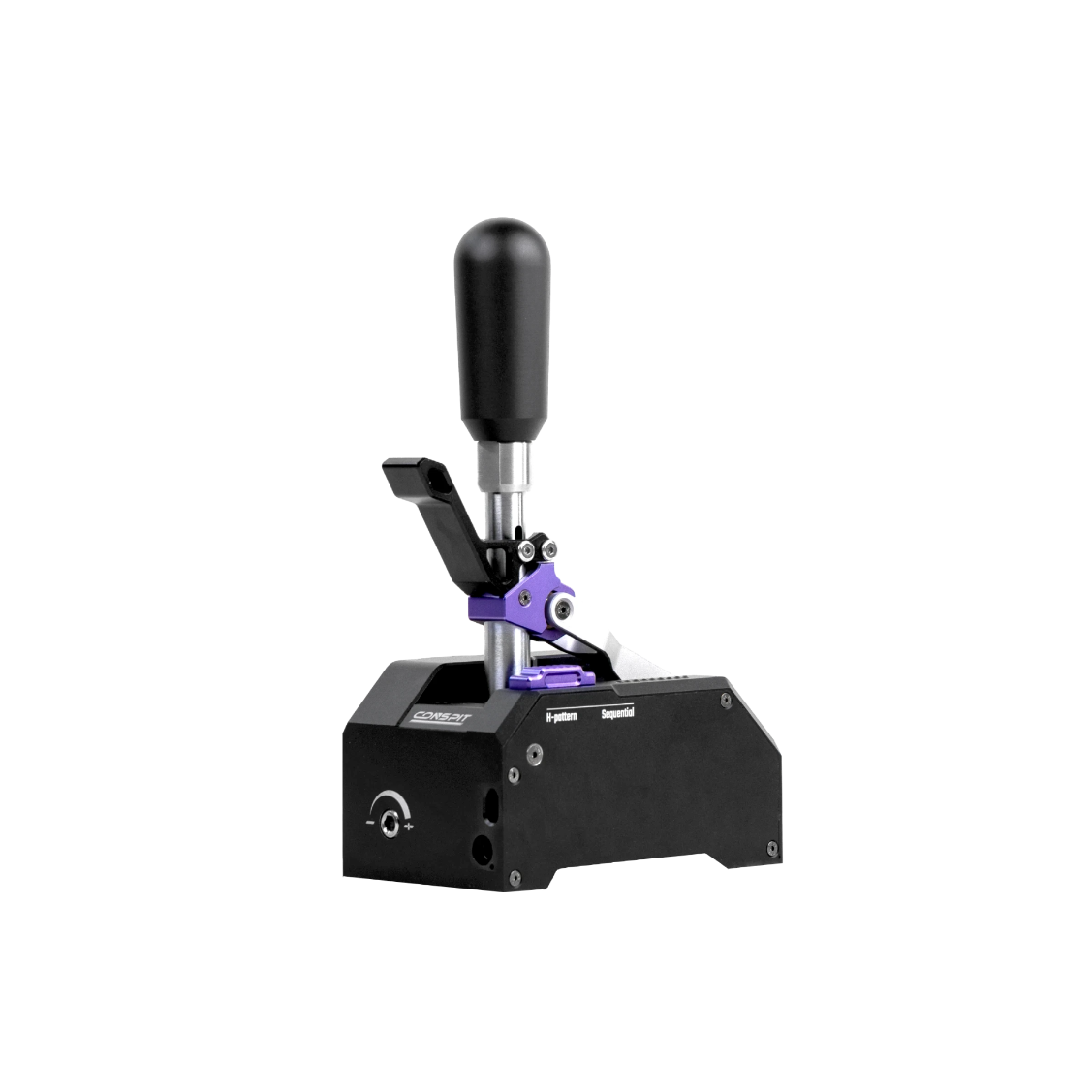

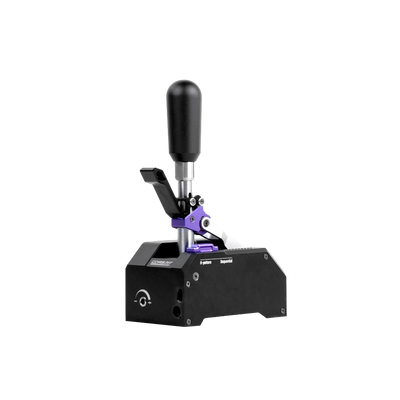

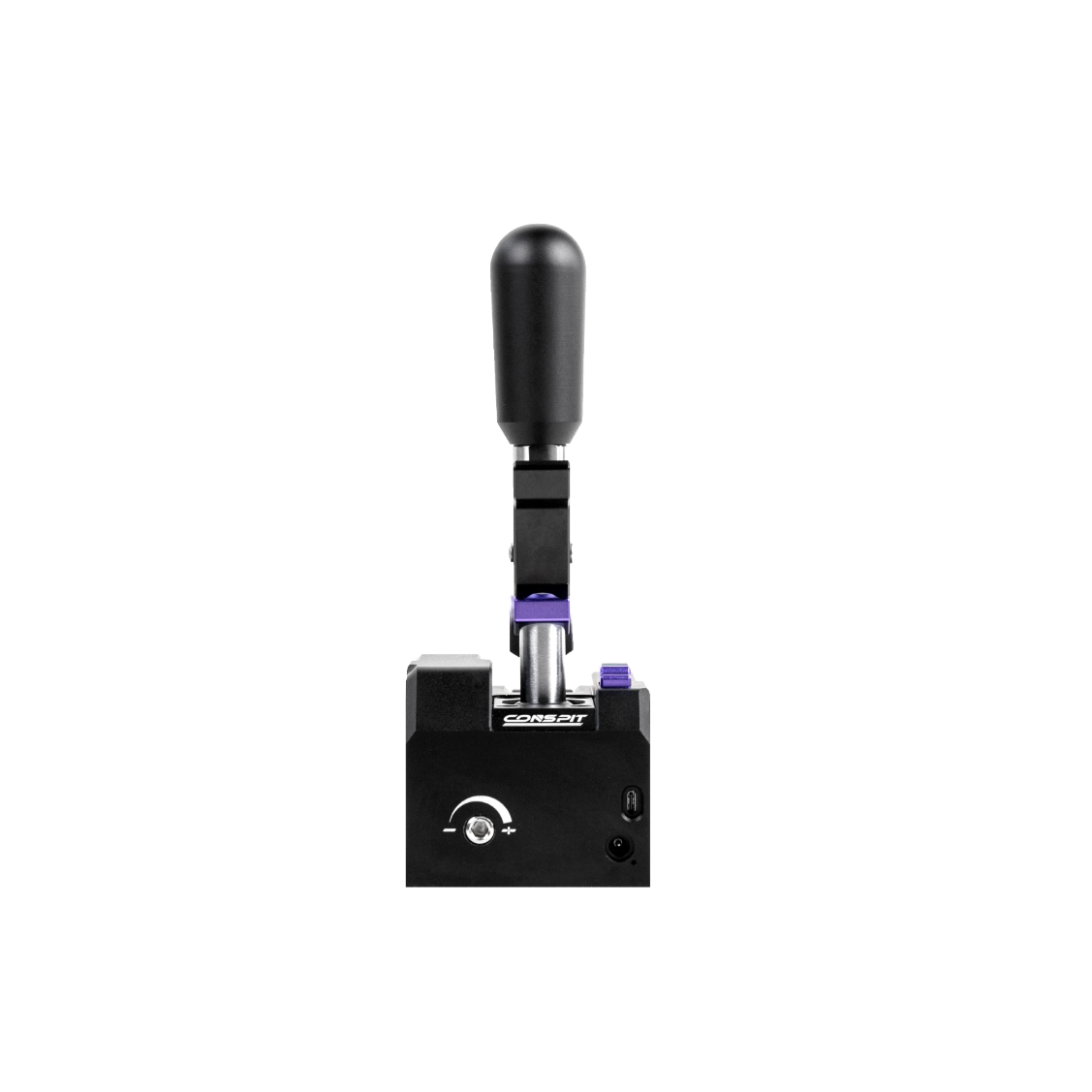

Conspit CHS Dual-Mode Shifter - 7+R H-Pattern & Sequential

The CHS is Conspit's all-metal dual-mode shifter, with a 7+R H-pattern and a sequential +/- mode in one compact unit. Each mode runs on its own mechanical path, so H-pattern shifts feel solid and defined while sequential shifts are short and crisp. Shift force adjusts from 3 to 10 kg.

It's built for PC sim racers who drive both road cars and race cars and want one shifter that doesn't compromise either.

Key Features

• Dual-Trace Mechanical Architecture: separate motion paths for H-pattern and sequential, each with its own feel.
• 3–10 kg adjustable shift force: set with a hex wrench, from light to heavy and mechanical.
• Full H-pattern throw: 38 mm / 12°, with 7th and reverse behind a dedicated lower lockout trigger.
• SnapShift sequential: an asymmetric short-throw path where the forward downshift is slightly shorter than the backward upshift, for quick, defined shifts.
• Tunable damping: reduces vibration and mechanical noise. Set it lighter and more direct, or heavier and more solid.
• One-piece aluminum alloy chassis: a single load-bearing body for a stable, tight feel under high force.
• Quick mode switching: a selector slider changes modes, and both modes can be bound in-game at once.
• 9 RGB LEDs: show gear position, RPM shift lights or status via Conspit Link 2.0, or map telemetry in SimHub.
• See the mechanism: a clear side window comes installed, and a dark-tinted window is included.
• 50 mm extension link included: raises the knob from 255 mm to 305 mm for easier sequential use.
• Compact 95 × 165 mm footprint: leaves more room for a handbrake beside it.
• Built to last: heat-treated 45# steel key components, validated to 1,000,000 mechanical cycles (500,000 lateral + 500,000 fore-aft).

Specifications

• Dimensions: 95 × 165 × 255 mm (default shift rod)
• Extended height: 305 mm with the included 50 mm extension link
• Net weight: 2.0 kg
• Main material: Aluminum alloy; heat-treated 45# steel key components
• Shift modes: H-pattern 7+R and sequential +/-
• Shift resistance: Adjustable 3–10 kg (hex wrench)
• H-pattern throw: 38 mm / 12°
• Sequential throw: SnapShift asymmetric short-throw
• Engagement start point: 12 mm / 4.5°, shared by both modes
• Durability validation: 1,000,000 cycles (500,000 lateral + 500,000 fore-aft)
• Indicators: 9 × RGB LEDs
• Sensors: Hall magnetic
• Side window: High-transparency installed; dark-tinted included
• Shift knob thread: M10 × 1.5 × 15 mm external
• Mounting: Bottom M5; Φ6.5 mm holes on adapter bars
• Connection: USB direct; SimHub RGB support
• Software: Conspit Link 2.0, SimHub
• Platform: PC

Compatibility

• PC (Conspit Link 2.0 and SimHub)
• Sim rigs and shifter mounts that accept bottom M5 mounting or the adapter bars' Φ6.5 mm holes
• Aftermarket shift knobs with an M10 × 1.5 thread

What's Included

• Conspit CHS Dual-Mode Shifter (high-transparency side window installed)
• Dark-tinted side window
• 50 mm extension link
• USB cable

Available in Canada from Full Push, an authorized Conspit dealer. Ships from Calgary, no duties.
