Vendor:Conspit

Conspit CSD Lite 5-inch SimHub Sim Racing Dashboard

$254.99 CAD
In stock, ready to ship

Pairs well with

Secure Checkout.

Returns up to 30 days.

Full Manufacturer's Warranty.

Free Shipping over $250 on most items.

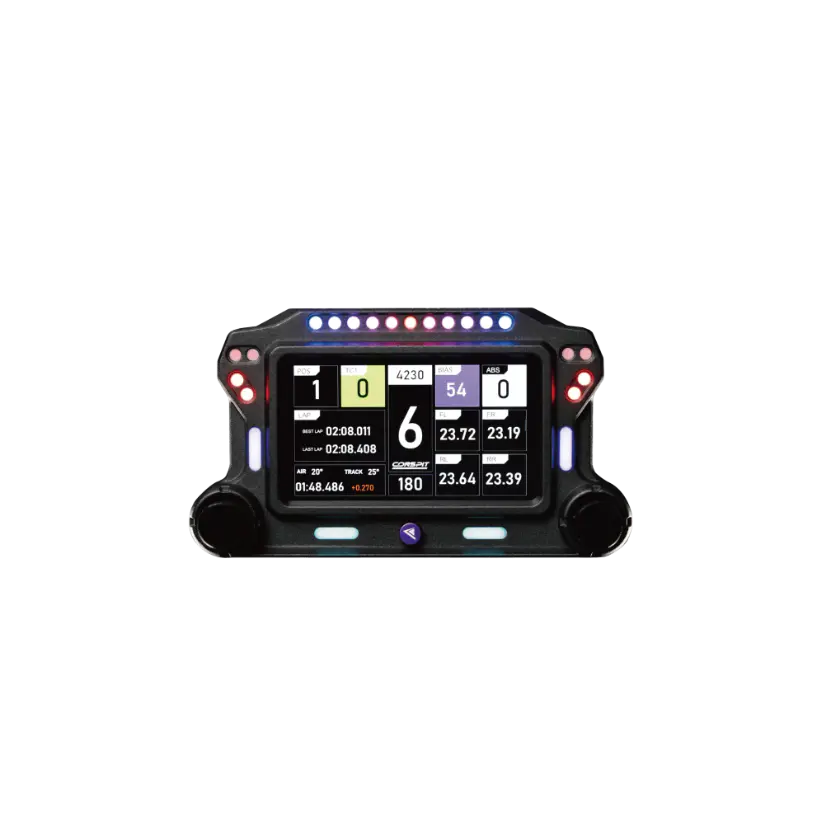

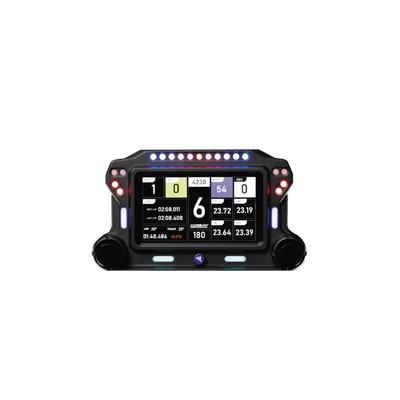

The CSD Lite is a 5-inch SimHub dashboard that brings GT-car style instruments to your rig. You get a touchscreen for live data, a 31-LED array for shift lights and flags, and two encoder knobs for control.

It's a plug-in option for PC sim racers who want a dedicated dash on their cockpit or wheelbase, and it comes ready to go with Conspit's preset SimHub profile.

Key Features

  • 5" IPS touchscreen: 854 × 480 resolution, 45 fps, 350 lumens, adjustable brightness, multi-touch with two-finger zoom.
  • 31 customizable RGB LEDs: four segmented indicator zones for RPM, flags and alerts.
  • Works out of the box: preloaded LED profile with 20+ preconfigured modes for RPM, flags, vehicle status, session info, radar and more.
  • Full SimHub integration: compatible with SimHub dashboards, with ready-to-use Conspit preset files and exclusive Conspit dash pages to download.
  • Two encoder knobs plus touchscreen: by default the main knob changes dash pages and the touchscreen cycles auxiliary pages. All controls are customizable.
  • Aluminum alloy shell: fine sandblasted and anodized finish.
  • Dual rear data ports: use either port to suit how you mount the dash.
  • Flexible mounting: rear bracket with one 1/4" and two M4 threaded holes.

Specifications

  • Display: 5" IPS touchscreen, 854 × 480, 45 fps, 350 lumens, adjustable brightness
  • Indicators: 31 × RGB LEDs (4 segmented zones)
  • Controls: 2 × encoder knobs, multi-touch screen
  • Dimensions: 191 × 107 × 43 mm
  • Main material: Aluminum alloy
  • Mounting: Aluminum alloy bracket with one 1/4" and two M4 threaded holes
  • Connection: USB direct
  • Cable: USB Type-C
  • Software: SimHub
  • Platform: PC

Compatibility

  • Conspit GT-Lite cockpit, aluminum profile rigs and other third-party sim rigs (with dedicated adapters)
  • Various wheelbases (with adapter brackets)
  • PC with SimHub

What's Included

  • Conspit CSD Lite dashboard
  • USB Type-C cable

Available in Canada from Full Push, an authorized Conspit dealer. Ships from Calgary, no duties.
