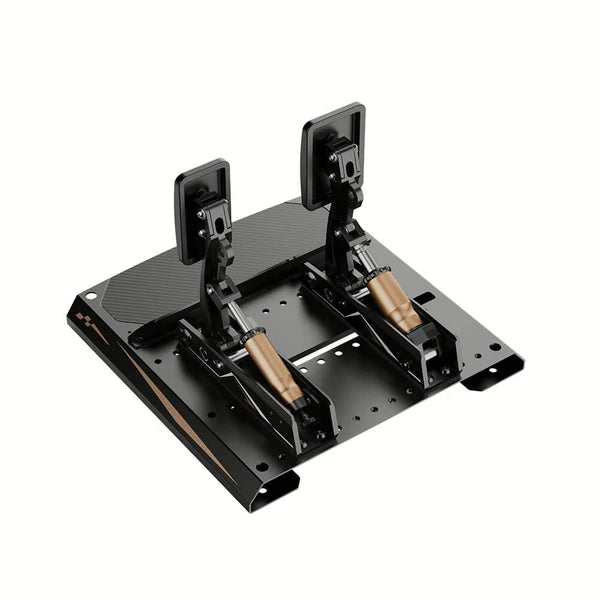

MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set
Moza CRP2 Load Cell Sim Racing Pedals Throttle & Brake
Moza CRP2 Load Cell Sim Racing Pedals Throttle & Brake
MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set
MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set
MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set
MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set
MOZA CRP2 load cell sim racing pedals — throttle and brake two-pedal set

Vendor:Moza

Moza CRP2 Load Cell Sim Racing Pedals Throttle & Brake

Sale price$509.00 CADRegular price $549.00 CAD
In stock, ready to ship

Pairs well with

Secure Checkout.

Returns up to 30 days. Return shipping paid by customer.

Full Manufacturer's Warranty.

Free shipping over $250 in Canada (exclusions apply)

MOZA's CRP2 pairs a load cell brake with a throttle on a CNC aluminium frame with a 3K carbon fibre heel plate. The 200 kg load cell and 15-bit angle sensor give a firm, repeatable brake, and swappable damping blocks change the feel.

  • 200 kg load cell brake, 15-bit angle sensor
  • Brake travel 15–20°, throttle travel 15–23°
  • Pedal angle 0–15°; face height and footrest adjustable
  • Connects to PC by USB; supports inverted mounting

Authorized Moza dealer, ships from Canada.

Specs
  • Pedal body material: Aerospace-grade aluminum alloy
  • Heel plate material: 3K twill carbon fiber
  • Base material: High-strength steel
  • Load cell sensor range: 0–200kg
  • Brake sensor: Load cell sensor and angle sensor
  • Angle sensor resolution: 15-bit (32768 PPR)
  • Brake pedal feel: 115 standard adjustments, 1764 optional configurations
  • Throttle adjustment: Two spring options with infinite adjustment
  • Brake travel adjustment: 15–20°
  • Throttle travel adjustment: 15–23°
  • Pedal angle adjustment: 0–15°
  • Pedal face height adjustment: Up to 30mm
  • Footrest adjustment: Up to 30mm
  • Pedal curve adjustment: Adjustable
  • Real-time pedal output display: Adjustable
  • Pedal pressure engagement point: Adjustable
  • Pedal surface: Biomimetic curved
  • Inverted mounting kit: Optional
Who it's for
  • PC sim racers moving to a load cell brake for consistent, pressure-based braking
  • Drivers who want lots of adjustment in pedal feel, travel and position
  • Rigid cockpits. An inverted mounting kit is optional
  • Add the CRP2 clutch for a full three-pedal set
What's included
  • 1 x MOZA CRP2 load cell pedals (Throttle+Brake)
  • 1 x Toolkit
  • 1 x Warranty card
FAQs

How strong is the CRP2 load cell?

MOZA uses a 200 kg load cell paired with a 15-bit angle sensor and a fusion algorithm. That range lets you set a firm, realistic brake without running out of sensor travel.

Can I change the brake feel?

Yes. MOZA's spec table lists 115 standard brake feel adjustments using swappable damping blocks. With the optional Performance Kit, it says up to 1,764 configurations are possible, from road car softness to F1 stiffness.

Do the CRP2 pedals work with other brands' wheelbases?

Yes. The CRP2 connects directly to a PC over USB, so MOZA says it works with all major sim platforms regardless of your wheelbase or shifter brand.

What can I adjust?

MOZA lists brake travel of 15 to 20 degrees, throttle travel of 15 to 23 degrees, pedal angle of 0 to 15 degrees, plus pedal face height and footrest position adjustment of up to 30 mm.
