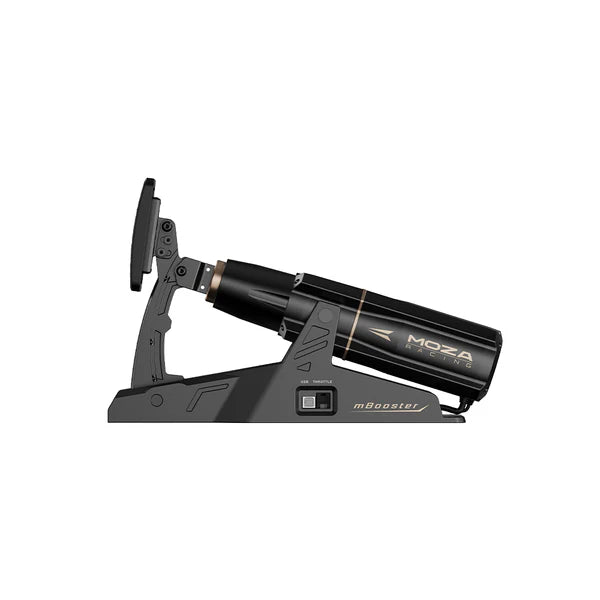

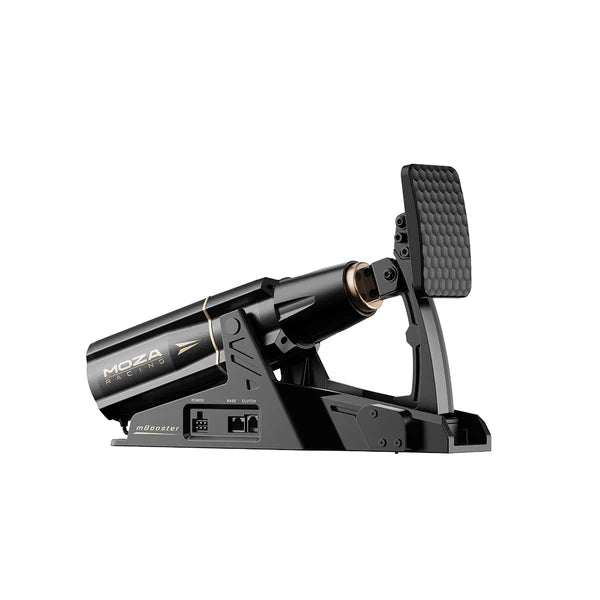

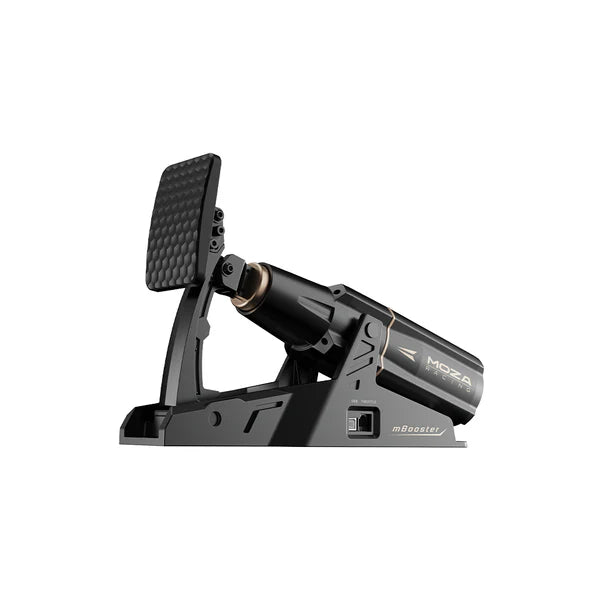

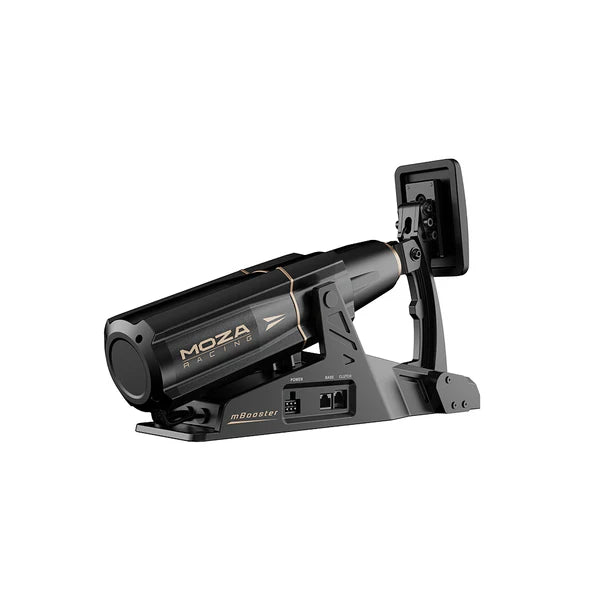

MOZA mBooster active brake pedal for sim racing — progressive resistance pedal
Moza mBooster Active Sim Racing Pedal
MOZA mBooster active brake pedal for sim racing — progressive resistance pedal
MOZA mBooster active brake pedal for sim racing — progressive resistance pedal
MOZA mBooster active brake pedal for sim racing — progressive resistance pedal
MOZA mBooster active brake pedal for sim racing — progressive resistance pedal

Vendor:Moza

Moza mBooster Active Sim Racing Pedal

$1,099.00 CAD
In stock, ready to ship

Pairs well with

Secure Checkout.

Returns up to 30 days. Return shipping paid by customer.

Full Manufacturer's Warranty.

Free shipping over $250 in Canada (exclusions apply)

The MOZA mBooster Active Pedal uses a high-torque servo and ball screw to push back, so MOZA says it can simulate ABS lockup, traction control, engine vibration and G-force effects. Set it as brake, clutch or throttle with one click in MOZA Pit House.

  • Dual 200 kg load cells, 21-bit magnetic encoder
  • 270W, 48V power supply included
  • Quiet 44 dB operation
  • Pairs with CRP2 pedals (mBooster Extension Plate needed)

Authorized Moza dealer, ships from Canada.

Specs
  • Body material: Aluminum Alloy
  • Pressure sensor range: 0–200 kg
  • Brake sensor: Load Cell Sensor and Angle Sensor
  • Angle sensor resolution: 15-bit (32768 PPR)
  • Peak power: 270W
  • Input voltage: 110V~220V AC → 48V DC
  • Travel adjustment: 0–25°
  • Angle adjustment: 0–15°
  • Curve adjustment: Adjustable
  • Real-time pedal output display: Adjustable
  • Pressure engagement point: Adjustable
  • Surface: Biomimetic curved
Who it's for
  • PC sim racers who want an active force feedback pedal that recreates ABS, traction control and engine vibration
  • Drivers who want to change brake feel in software instead of swapping springs
  • CRP2 owners (the mBooster Extension Plate is needed to mount it with CRP2)
  • Use it as a brake, clutch or throttle
What's included
  • 1 x MOZA mBooster Active pedal
  • 1 x 48V power supply
FAQs

How is the mBooster different from a normal pedal?

It is an active pedal. A high-torque servo motor and ball screw drive create force feedback, so MOZA says it can simulate ABS lockup, traction control, engine vibration and G-force effects.

Do I need tools to change the pedal feel?

No. In MOZA Pit House you can adjust rebound, stroke, damping and friction, and switch between throttle, brake or clutch modes with one click.

Does it work with CRP2 pedals?

Yes. MOZA says it pairs with CRP2 pedals and the CRP2 clutch. CRP2 users need the mBooster Extension Plate to mount it alongside their existing pedals.

Is it loud?

MOZA lists operation at only 44 dB, thanks to a closed, rail-free mechanical structure and an efficient servo motor. The body is aviation-grade aluminium.
